Architecture for GigaVUE Cloud Suite for VMware NSX-T
This section provides an overview of the GigaVUE V Series Node deployment on the VMware NSX-T platform and describes the procedure for setting up the traffic monitoring sessions using the GigaVUE V Series Nodes. The GigaVUE V Series Nodes support traffic visibility on the NSX-T NVDS switch.
GigaVUE-FM creates, manages and deletes the GigaVUE V Series Nodes in the VMware NSX-T based on the configuration information provided by the user. GigaVUE-FM can communicate directly with the GigaVUE V Series Nodes.

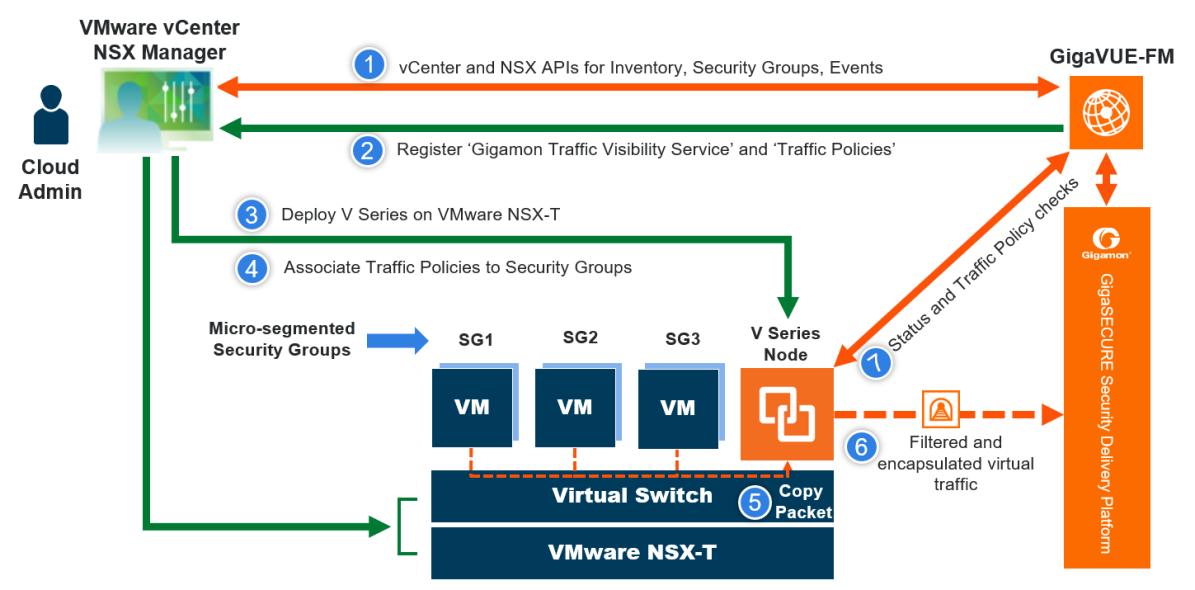

The following diagram provides a high-level overview of the deployment:
Refer to the following Gigamon Validated Designs for more detailed information:
