SMT-HC1-S (Generation 3 GigaSMART Card)

GigaVUE-HCT supports the Generation 3 GigaSMART card (SMT-HC1-S), which gives up to 80Gb throughput. There are no front end ports on this module.

Modules are hot-swappable. Refer to Hot Swapping Modules for instructions.

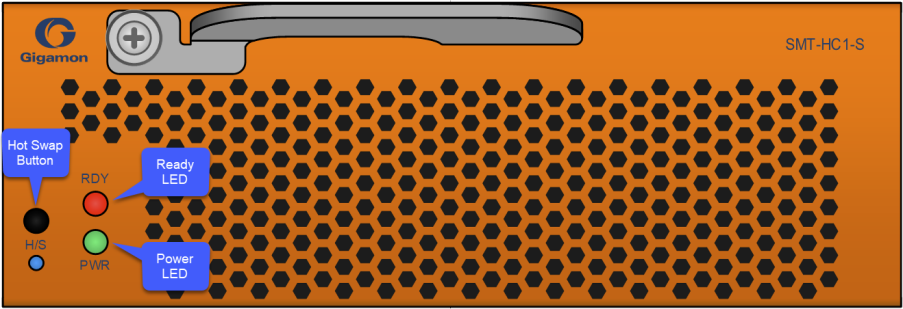

Generation 3 GigaSMART Card (SMT-HC1-S)

Maximum Modules Per Chassis

The maximum SMT-HC1-S number of modules per chassis is one.

Power LED (PWR)

The LED indicates the operational status of the module as follows:

● OFF means the module is not powered up.
● GREEN means the module is powered on.

Ready LED (RDY)

The LED indicates the operational status of the module as follows:

● OFF means the module is inserted but not yet configured.
● RED means the module failed.
● GREEN means the module is ready.

H/S LED

The LED indicates the operational status of the module as follows:

● OFF means the module is in normal operation.
● BLUE means the module is ready to be removed when the card is shut down or not configured. LED turns on at insertion of module.

Hot Swap Button

The hot-swap button is not supported, but the command "card slot <slot id> down" can be used to hot-swap the module from the chassis.
