Four-Post Rack Mounting

Use rack ears and full-length brackets to mount the GigaVUE‑HC1-Plus in a four-post rack. The rack ears attach at the front of the unit, and the brackets attach at the rear, as follows:

■

Attach the rack ears so they face towards the front of the system for mounting in four-post racks.

■

Attach the full-length brackets to the sides of the GigaVUE‑HC1-Plus with enough free play to position them to fit your rack's dimensions. After the brackets are attached to the rack's rear posts, tighten the bracket connections to the sides of the GigaVUE‑HC1-Plus.

Refer to 1 Extended Bracket Installation for the four-post rack installation using the extended brackets.



1

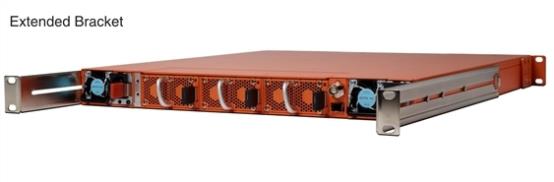

Extended Bracket Installation
