Create AWS Credentials

You can monitor workloads across multiple AWS accounts within one Monitoring Domain.

After launching GigaVUE‑FM in AWS, if the IAM is attached to the running instance of FM, then the EC2 Instance Role authentication credential is automatically added to the Credential page as the default credential. You must attach the IAM prior to creating a Monitoring Domain.
If you use the Basic Credentials authentication credentials, you must add these to the GigaVUE‑FM on the AWS Settings page, or on the Monitoring Domain creation page.

Refer to Create a Monitoring Domain for more details on how to create a Monitoring Domain.

Prerequisite:

Configure the required permission and privileges in AWS. Refer to the following topics for more detailed information on how to configure the required permission and privileges in AWS based on your deployment option.

Deployment Option	Reference Topics
Acquire Traffic using UCT-V	Minimum Permissions Required for Acquiring Traffic using the UCT-V
Acquire Traffic using Customer Orchestrated Source	Minimum Permissions Required for Acquiring Traffic using the Customer Orchestrated Source
Acquire Traffic using Customer Orchestrated Source when configuring Gateway Load Balancer in AWS	Minimum Permissions Required for Acquiring Traffic using the Customer Orchestrated Source with GwLB
Acquire Traffic using Customer Orchestrated Source when configuring Network Load Balancer in AWS	Minimum Permissions Required for Acquiring Traffic using the Customer Orchestrated Source with NwLB
Acquire Traffic using Traffic Mirroring	Minimum Permissions Required for Acquiring Traffic using Traffic Mirroring
Acquire Traffic using Traffic Mirroring when configuring Gateway Load Balancer in AWS	Minimum Permissions Required for Acquiring Traffic using Traffic Mirroring and GwLB
Acquire Traffic using Traffic Mirroring when configuring Network Load Balancer in AWS	Minimum Permissions Required for Acquiring Traffic using Traffic Mirroring with Network Load Balancer
Acquire Traffic using Inline V Series in AWS	Minimum Permissions Required for Acquiring Traffic using Inline V Series

To create AWS credentials:

Go to Inventory > VIRTUAL > AWS, and then click Settings > Credentials

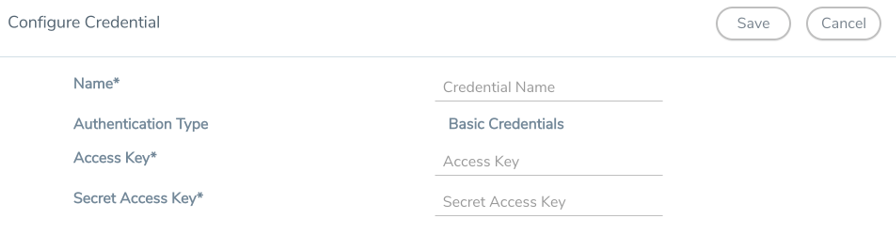

On the Credential page, click the Add button. The Credential Configure page appears.
Enter a name to identify the AWS Credential in the Name Field.
Basic Credentials is selected as the default Authentication Type. For more information, refer to AWS Security Credentials
Enter the credential of an IAM user or the AWS account root user in the Access Key field.
Enter the security password or key in the Secret Access Key field.
Click Save. You can view the list of available credentials on the AWS Credential page.

What to do Next:

After creating AWS credentials in GigaVUE-FM, based on your deployment option, perform any of the following actions.

Deployment Options	Reference Topics
With Load balancer
Using Network Load balancer	Configure Network Load Balancer in AWS
Using Gateway Load balancer	Configure a Gateway Load Balancer in AWS
Using Gateway Load balancer for Inline V Series	Configure a Gateway Load Balancer in AWS for Inline V Series Solution
Without a Load Balancer and using GigaVUE-FM Orchestration
Deploying GigaVUE Fabric Components using GigaVUE-FM with Traffic Acquisition Method as VPC Mirroring or Customer Orchestrated Source	Create a Monitoring Domain
Deploying GigaVUE Fabric Components using GigaVUE-FM with Traffic Acquisition Method as UCT-V	Configure UCT-V
Without a Load Balancer and using Third Party Orchestration
Deploying GigaVUE Fabric Components using AWS Traffic Acquisition Method as VPC Mirroring or Customer Orchestrated Source	Configure Tokens
Deploying GigaVUE Fabric Components using GigaVUE-FM with Traffic Acquisition Method as UCT-V	Configure UCT-V
