Upload GigaVUE V Series Node Image into GigaVUE‑FM

You can upload your V Series Node image to GigaVUE‑FM to use it as an internal image server.. This step is optional.

To upload the V Series image into GigaVUE‑FM,

1. Go to Inventory > VIRTUAL > VMware NSX-T (V Series), and then click Settings > OVA Files.

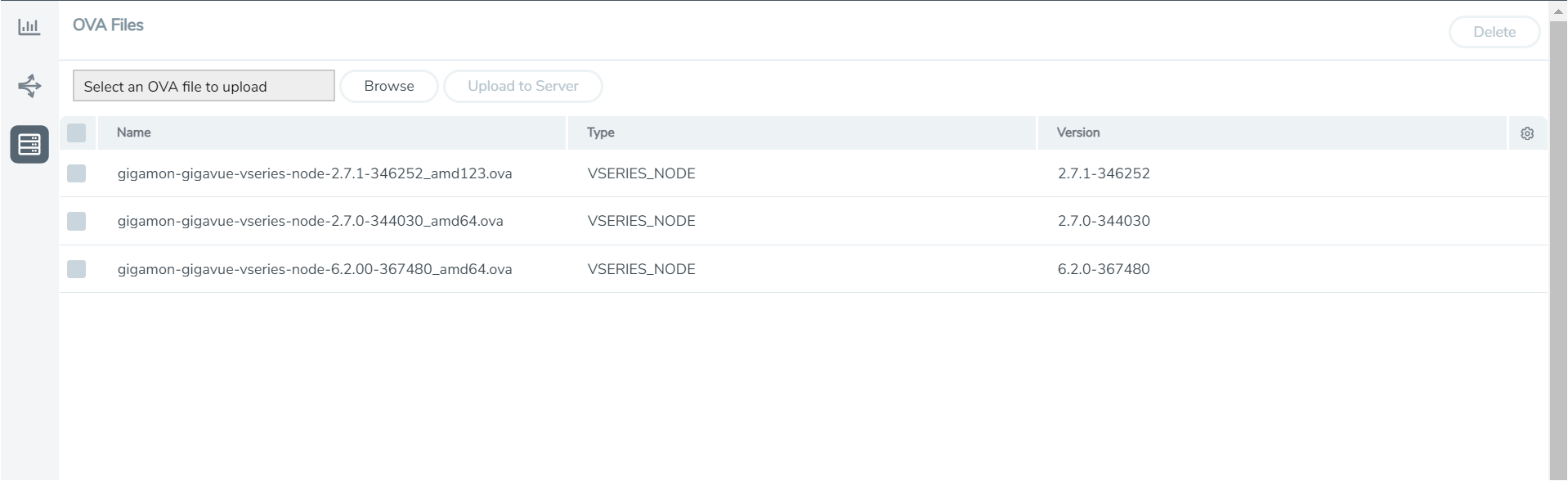

2. The OVA Files page appears.




3. On the OVA Files page, select Browse to select the gigamon-gigavue-vseries-node-x.x.x-0-xxxxxx.ova file.
4. Select Upload to Server.

The selected OVA image file is uploaded to the GigaVUE‑FM server.

Note:  You can upload a maximum of three OVA files to GigaVUE‑FM for VMware NSX-T.
