Connecting Serial Console and Mgmt Ports



To make basic connections (serial console and Mgmt ports):

1.

Locate the DB9-to-RJ45 serial cable provided with the GigaVUE‑TA200E node. This cable is called a console cable.

Note: This cable is Cisco-compatible.

2.

Connect the RJ45 end of the console cable to the console port.





1

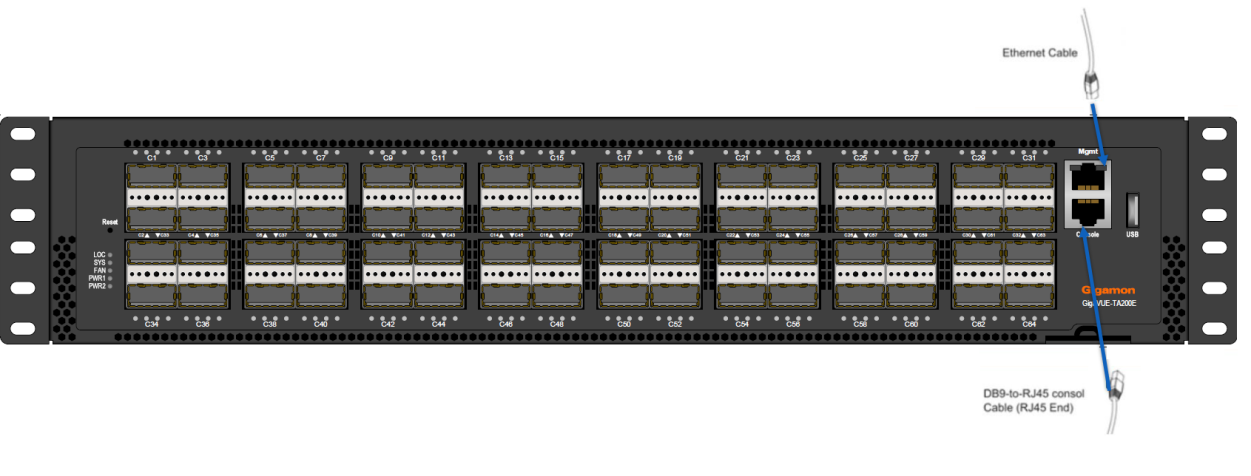

Connecting the Console and Management Ports

3.

Connect the DB9 end of the console cable to a PC’s COM port.

4.

Connect a standard ethernet cable (Cat5 or better) to the 10M/100M/1000M Mgmt port.

5.

Connect the other end of the ethernet cable to an Ethernet network.
