Inline TLS/SSL Decryption Deployments

There are two ways to deploy inline TLS/SSL decryption as follows:

■

sessions are inbound

■

sessions are outbound

Refer to 1 for an example of an inbound deployment. The client is on the Internet. The server and the GigaVUE-OS and GigaVUE‑FM node are located within the same enterprise network, with the GigaVUE-OS and GigaVUE‑FM node deployed on the server side. The GigaVUE-OS and GigaVUE‑FM node needs access to the private keys of the server to perform Man-in-the-Middle (MitM) decryption.

1

Inbound Deployment of Inline TLS/SSL Decryption

Use case for inline TLS/SSL decryption:

■

Clients on the Internet

■

Servers in internal network

■

Organization has the private key of the server

■

Diffie-Hellman and Perfect Forward Secrecy is being used

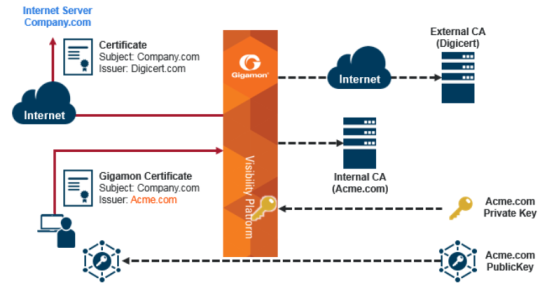

Refer to 2 for an example of an outbound deployment. The client and the GigaVUE-OS and GigaVUE‑FM node are located within the same enterprise network, with the GigaVUE-OS and GigaVUE‑FM node deployed on the client side. The server is located in another network on the Internet. In this deployment, the role of the GigaVUE-OS and GigaVUE‑FM node is that of a Man-in-the-Middle (MitM). In this deployment, the GigaVUE-OS and GigaVUE‑FM node does not have access to the private keys of the server, but as a trusted MitM, the GigaVUE-OS and GigaVUE‑FM node can look at TLS/SSL traffic.

2

Outbound Deployment of Inline TLS/SSL Decryption
