View Application Metadata Exporter Statistics

To view the application Statistics for the Application Metadata Exporter application, follow the steps given below:

Go to Traffic > Virtual > Orchestrated Flows > Third Party Orchestration. The Monitoring Sessions Overview page appears.

Navigate to the TRAFFIC PROCESSING tab. In the canvas page, click the

menu button on the AMX application and select Details. The Application quick view appears.

Click on STATISTICS tab.

To view the statistics of a particular GigaVUE V Series Nodes, select the required GigaVUE V Series Node from the V Series Nodes dropdown menu to view the Ingestor, Exporter, and Attributes Enrichment statistics.

You can download the Ingestor and Exporter statistics using the following options:

■

Download TCP Dump (Ingestor)- Select this option to download the PCAP file. The TCP dump capture is limited to 100 packets and runs for up to 30 seconds, or until 100 packets are captured (whichever occurs first). You can capture a TCP dump for only one AMX ingestor at a time

■

Download Records (Exporter) - Select this option to download the JSON file of the exporter records. You can download records for a single AMX exporter or for multiple exporters. The exporter record download waits up to 30 seconds for records to be exported. If no records are produced, the operation times out.

For more information on troubleshooting AMX ingestor and exporter issues, refer to Troubleshoot AMX Deployment.

You can view the following parameters in the Application Metadata Exporter application statistics page.

Exporter - Statistics to monitor exports from AMX

Parameters	Description
Name	Displays the name of exporters created for this application.
Exported Entries	Displays the number of entries available in the files that will be uploaded from AMX to the cloud tool or the Kafka consumers.
Average File Size	Displays the average size of the file.
File Upload Errors	Displays the number of file uploaded from the AMX to the cloud tool or the Kafka consumers.
File Upload Errors	Displays the number of times the file was not uploaded to the cloud tools or Kafka consumers due to errors.

Ingestor - Statistics to monitor ingestion

Parameters	Description
Name	Displays the name of the ingestor created for this application.
Packets Received	Displays the packets received from the AMI to AMX ingestor.
Packets Dropped	Displays the packets dropped when the traffic passes from AMI to AMX ingestor.
Octets Received	Displays the octets received from the AMI to AMX ingestor.
Octets Dropped	Displays the octets dropped when the traffic passes from AMI to AMX ingestor.
Records Added	Displays the number of workload information pulled from the workload environment.
Records Dropped	Displays the number of the workload details that were dropped from the workload environment.
Request Success	Displays if the workload information was fetched from the cloud environment. The default interval at which the AMX fetches the workload information is 60 seconds.
Request Authentication Errors	Displays if the workload information was not fetched from the cloud environment due to any authentication errors like wrong password.
Request Timedout Errors	Displays if the workload information was not fetched from the cloud environment even after the default interval of 60 seconds.
Request Errors	Displays when the workload information could not be fetched from the cloud environment due to issues other than authentication failures or timeout conditions.
Decode Success	Displays number of successful decoding operations performed by a system when processing NETFLOW/IPFIX packets.
Decode Fail	Displays the number of failed attempts to decode NETFLOW/IPFIX packets.
Elements Skipped	Displays number of data elements that were not processed or were omitted during the NETFLOW/IPFIX ingestion process.

Attributes Enrichment - Statistics to monitor enrichment

Parameters	Description
Name	Displays the name of the Metadata enrichment.
One Min Percent	Displays the percentage of the traffic that is enriched from the last 1 minute.
Five Min Percent	Displays the percentage of the traffic that is being enriched from the last 5 minutes.
Ten Min Percent	Displays the percentage of the traffic that is being enriched from the last 10 minutes.

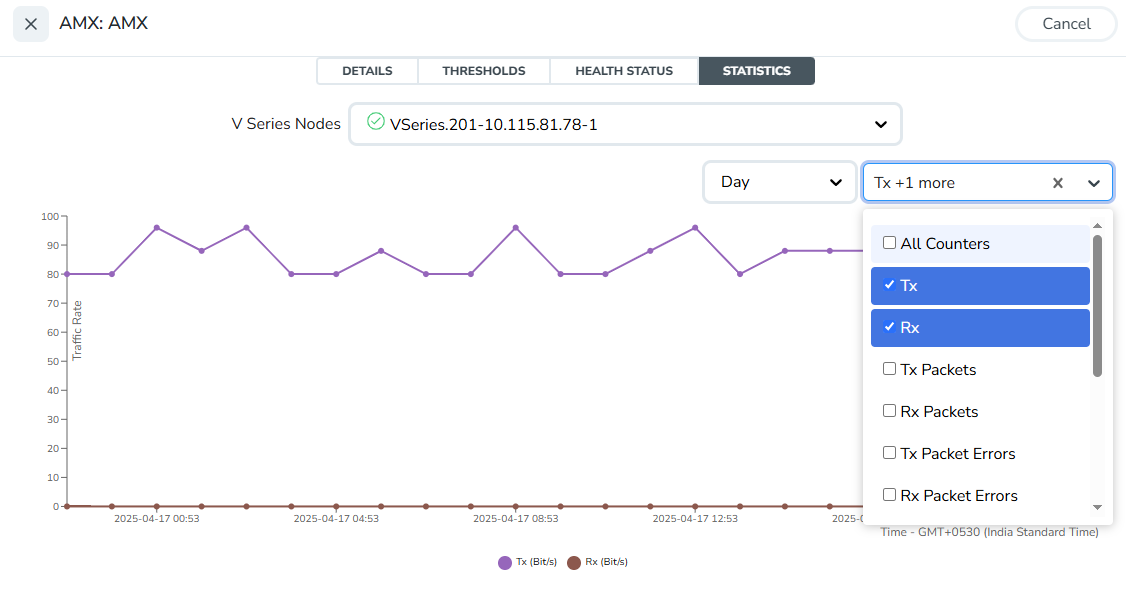

The following image shows the statistical details for general AMX application.
