PRT-HC1-X12 Module
The PRT-HC1-X12 line card consists of twelve(12) 1Gb/10Gb (X1 to X12) SFP/SFP+ ports. This module increases the port density and allows GigaVUE-HCT to connect with GigaVUE TA Series and GigaVUE HC Series nodes with 1G/10G links. It provides connectivity of 120Gb with line rate on-board switching across 1Gb/10Gb ports. All ports in the PRT-HC1-X12 module can be used as network, tool, hybrid, circuit, inline network, and inline tool ports. Moreover, the 10Gb ports can be used as stack-link ports.
Before installing the PRT-HC1-X12 Module, the GigaVUE-HCT must be running software version 6.9 or higher. Refer to 1 PRT-HC1-X12 Module.
| 1 | PRT-HC1-X12 Module |
Features
| 1. | This module is hot swappable. |
| 2. | The hot-swap button is not supported, but the command "card slot <slot id> down" can be used to hot-swap the module from the chassis. |
For details about the supported transceiver, cable type, fan-out, inline ports, and clusters, refer to GigaVUE-OS Compatibility and Interoperability Matrix.
Module LED

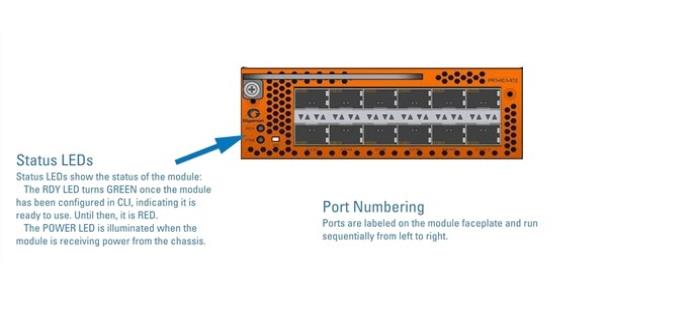

The LEDs on the modules indicate the current operational status. The operational states indicated by the color of Power (PWR) and Ready (RDY) LEDs are as described below.
|
LEDs |
Color |
Description |
|---|---|---|
|
PWR - Power LED |
Solid Green |
Indicates the module is receiving power |
|
RDY - Ready LED |
Solid Green |
Indicates normal condition |
|
Solid Red |
Indicates system booting or module down |
Port Status LED
The 1Gb/10Gb SFP/SFP+ LED states are as described below:
|
LED |
Color |
Description |
|---|---|---|
|
Port LED X1..X12 |
OFF |
Port is administratively disabled, or the link is down. |
|
Solid Green |
Link up |
|
|
Activity LED |
N/A |
Unused |
Rules and Notes
| 1. | In a cluster, performing chassis reload, power cycle, or PRT-HC1-X12 card shut while traffic is running may cause ports to malfunction. To resolve this issue, stop the traffic first, then reload or power cycle the chassis. |
| 2. | In a cluster, performing port shut while traffic is running may cause ports to malfunction. To resolve this issue, stop the traffic first, then toggle the malfunctioning port admin status. |
