Configure Proxy Server profile in an Inline SSL Deployment

To successfully attach the Proxy Server profile to the Inline SSL Deployment, follow the below steps:

■

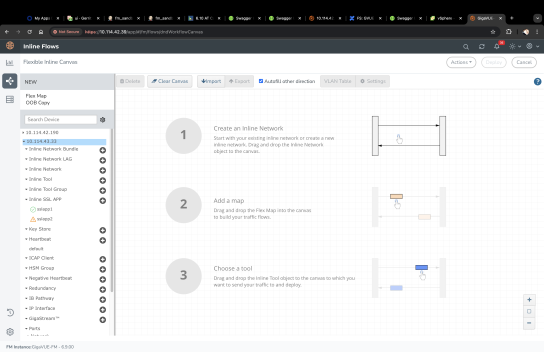

On the left navigation pane, go to Physical > Orchestrated Flows >Inline Flows.

■

Select the required device with your configured flexible inline decryption solution.

■

Click the ‘+’ icon next to the Inline SSL APP option to create a new flexible inline decryption solution or to open the configured solution.

■

Under Network Access section, select a Proxy Server profile from the drop-down. You can select Proxy Server profiles for each of your GigaSMART engines. Refer Configure Proxy Server profile in an Inline SSL Deployment Inline SSL APP—Field References in GigaVUE Fabric Management Guide for details.

■

Click on OK to save your configurations. You can assign the configured proxy server profiles to each of your GigaSMART engines.

■

You can view the health of the proxy server profile on the Proxy Server Configuration page and on the Inline SSL application page, as shown in the screen below

■

The health of the proxy server profile would have the following states:

o

- This icon indicates that the connection is a success.

o

- This icon can indicate any of the following states of the connection :

•

Authentication Failure

•

Domain Name Lookup Failure

•

Connection Failure

•

Internal Error

•

Disabled



1

-Connection is a Success , - Connection is ; Authentication Failure or Domain Name Lookup Failure or Connection Failure or Internal Error or Disabled
