AMX Application Deployment Options

The output from the Application Metadata Intelligence or GTP Correlation Engine is sent to the AMX application, which exports it to the tools in the required formats. AMX application is always deployed in GigaVUE V Series Node. The GigaSMART application sending data to the AMX application can be on hardware or the GigaVUE V Series Node. Based on where the GigaSMART applications are, there can be four deployment methods:

Note:  For exporting GigaVUE Enriched Metadata for Cloud Workloads, AMI should be deployed in GigaVUE V Series Nodes.

o   Hardware (AMI)
o   Hardware (Control Plane Metadata)
o   Virtual (VMware)

On-Premises

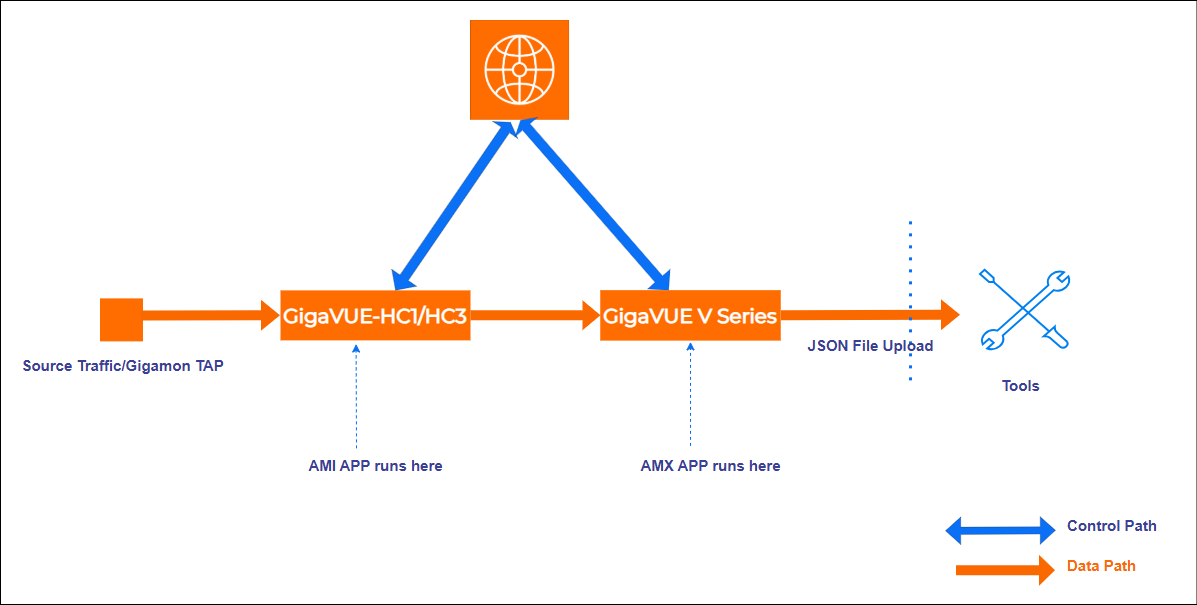

Hardware (AMI)

In hardware deployments, the Application Metadata Intelligence (AMI) runs on a physical node/cluster, and the AMX application is deployed on a GigaVUE V Series Node running on VMware ESXi. The output from the AMI in CEF format is sent to the AMX application in GigaVUE V Series Node. The performance of the device and the application is managed by GigaVUE-FM. The following devices support the integration of AMX application:

  • GigaVUE-HC1
  • GigaVUE-HC3
  • GigaVUE‑HC1-Plus

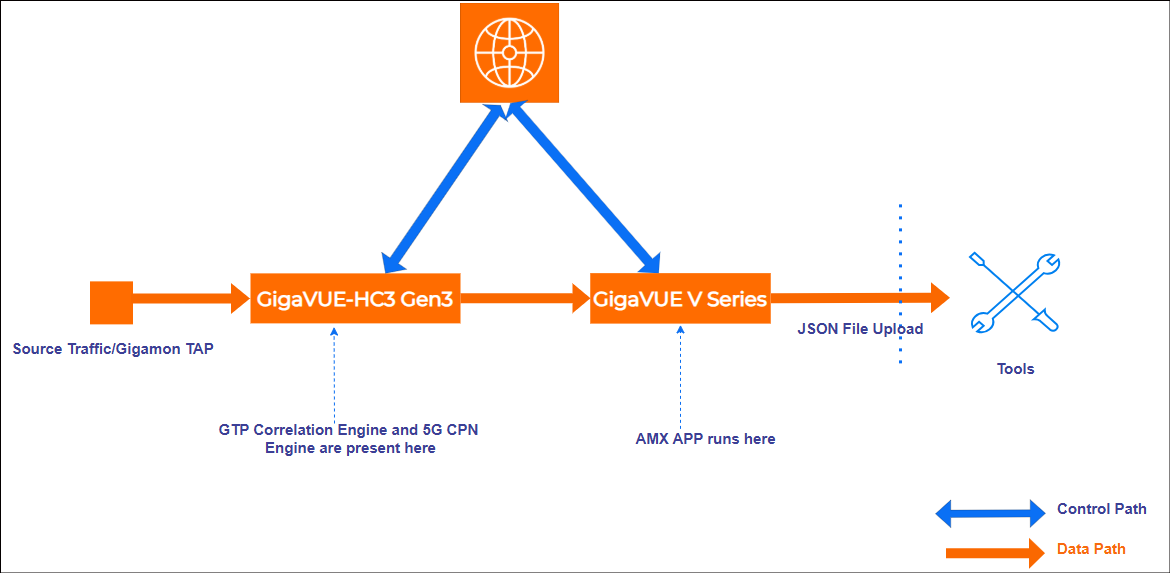

Hardware (Control Plane Metadata)

In hardware deployments, the GTP Correlation Engine runs on a physical node/cluster, and the AMX application is deployed on a GigaVUE V Series Node running on VMware ESXi. The output from the GTP Correlation Engine in Flat JSON format is sent to the AMX application in GigaVUE V Series Node. The performance of the device and the application is managed by GigaVUE-FM. The GigaVUE-HC3 Gen3 devices support the integration of AMX application.

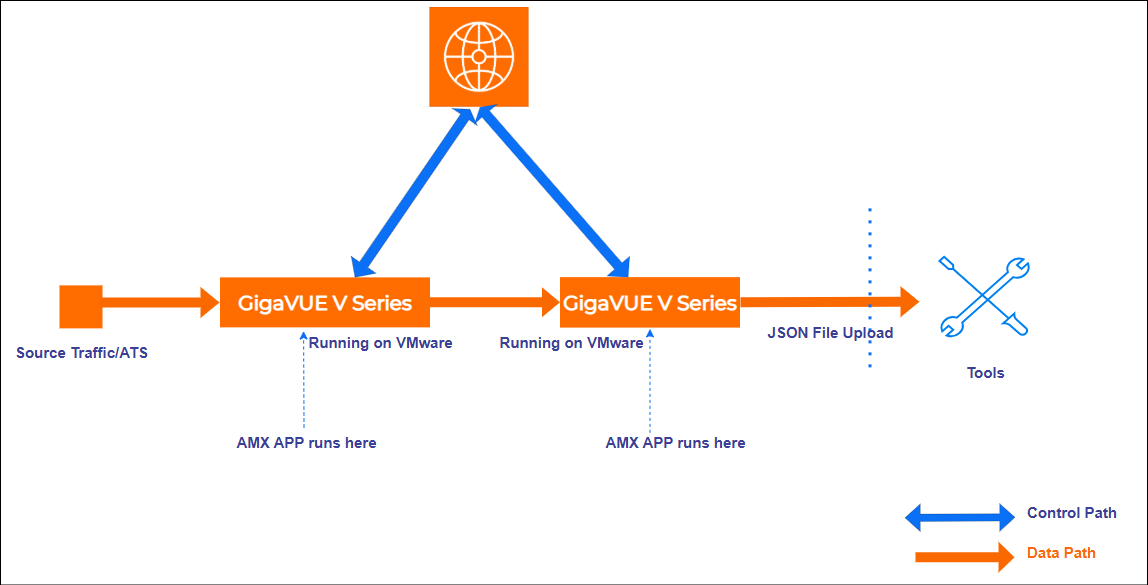

Private Cloud (VMware)

In the Private Cloud environment, the application is supported only on VMware and can be deployed in the VMware as shown in the diagram.

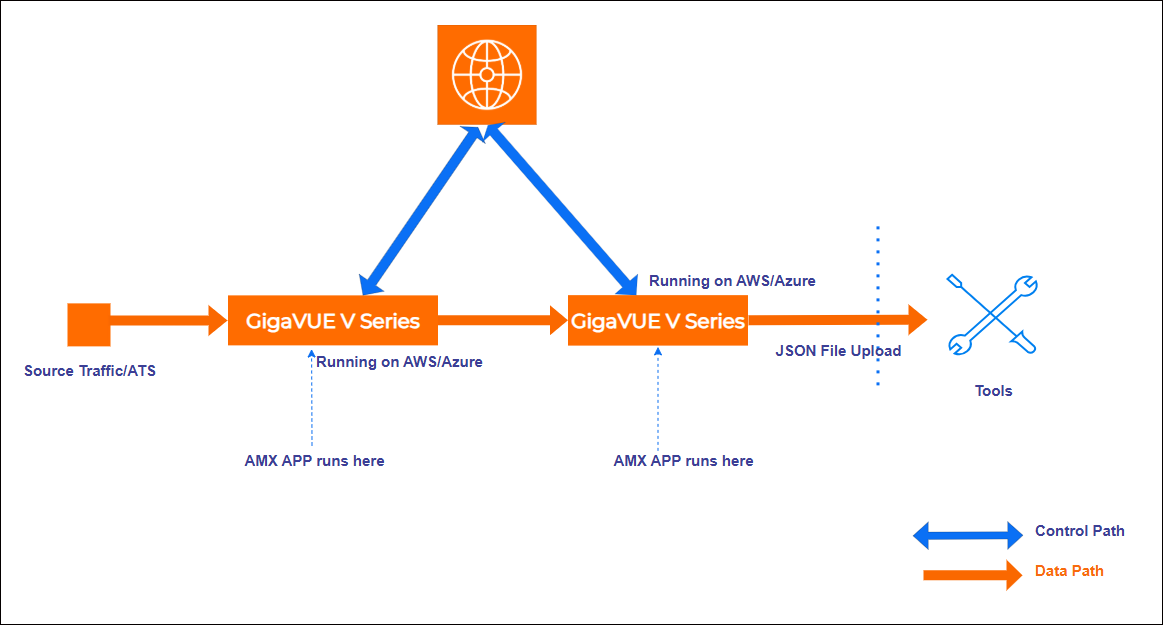

Public Cloud

In the Public Cloud environment, the application is supported on AWS and Azure platforms, and can be deployed as shown in the diagram:
