Architecture of Universal Cloud Tap - Container

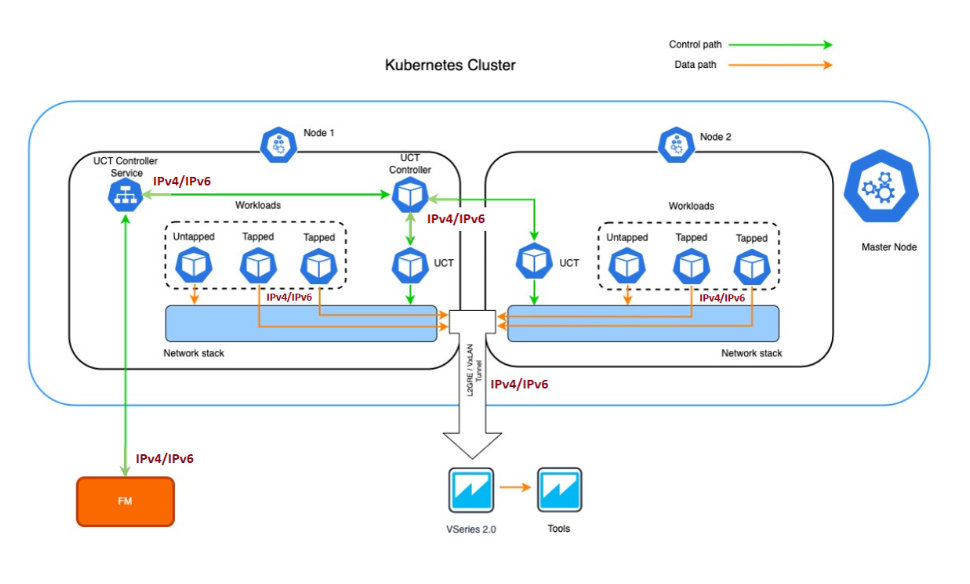

The following diagram illustrates the architecture of Universal Cloud Tap - Container environment.

1. UCT-Ccontroller registers with GigaVUE‑FM.
2. The UCT-C Tap is registered with GigaVUE-FM through the UCT-C Controller
3. GigaVUE-FM deploys the traffic policy on the UCT-Cs.
   Communication of configuration, data, and statistics to and from UCT-C is performed through the UCT-C Controller Service. GigaVUE-FM communicates with the UCT-C Taps through the UCT-C Controller. GigaVUE‑FM deploys the traffic policy on UCT-C and receives the statistics from UCT-C tap through UCT-C controller.
4. The filtered network packets are tunneled directly to the Tools or through the GigaVUE V Series nodes running on any supported GigaVUE Cloud Suite on cloud environment.
5. The UCT-C Controller collects the data from UCT-C Taps and sends the collected statistics and heartbeats to GigaVUE-FM.
