Grounding the GigaVUE Chassis

1.

Locate the grounding holes at the rear of the chassis. Refer to or 2.

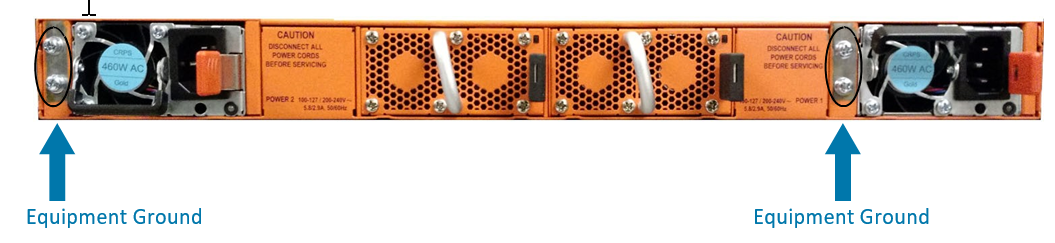

1

Ground Screws (GigaVUE Shown)

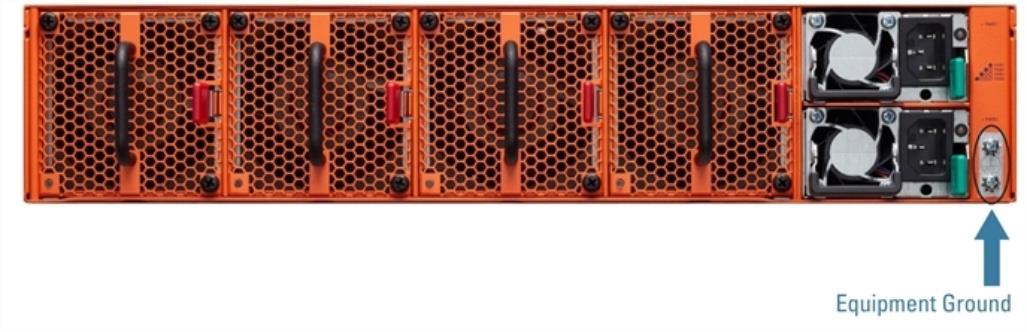

2

Ground Screws (GigaVUE-Shown)

2.

Install ground screws meeting the following specifications:

#8 Panhead, Phillips-drive, Exterior SEM screw Thread size = 32Length = 1/2in (1.27cm)

3.

Connect grounding wire with spade lugs both to the ground screws and to earth ground. The specifications for the ground wire and lugs are as follows:

Standard Wire 14 (AWG); Stud Size #6 (0.138in/0.351cm); Spade Width 0.32in/0.813cm

4.

Tighten the screws to secure both the chassis ground screws and the earth ground screws.
