Create NetFlow Session for Physical Environment

Note: This configuration is applicable only when using NetFlow License.

1.   On the left navigation pane, select Traffic > Solutions > Application Intelligence.
2. Click Create New. The Create Application Intelligence Session page appears.

Note:   If the Create button is disabled, check whether a valid license for Application Metadata Intelligence or Application Filtering Intelligence is available.

3. In the Basic Info section complete the following:
■   Enter the name and description (optional).
■   Select Physical in the Environment field.
■   Select the node from the list of nodes.
4. In the Configurations section, view the following:
a. Select a GigaSMART Group. You can also choose to create a new GigaSMART Group.
•   Provide a name in the Alias field.
•   Select a port or multiple ports from the Port List.
•   Click Save.
5. If you are unable to view the required port in the Port field, perform these steps:
o   Click Port Editor. Select the Type as Tool from the drop-down list for the required Port Id. Select OK.

The selected Port appears in the list.

o   Select the Type as:
o   IPv4 - to allow the traffic in IPv4 interface.
o   IPv6 - to allow the traffic in IPv6 interface.
o   Provide the IP Address, IP Mask, Gateway, and MTU. Provide the IP address corresponding to the IP interface selected.
o   Click Save.
6. In the Source Traffic section, select a source port that require application monitoring in the Source ports field. Source port can be a single port, multiple ports, and port groups.

Note:   Ports already used as source ports in the intent-based orchestrated solution will not be listed in the drop-down.

7. Configure the rules for filtering the required traffic in the L2-L4 Rules fields. To configure a rule:
a. Click Select Conditions. Select the required parameters from the drop-down list.
b. Select the value for the parameters from the drop-down.
c. Select the required options:
•   Pass or Drop - Based on the parameter selected in the Conditions fields, the traffic that matches the conditions will either be passed or dropped.
•   Bidirectional - Allows the traffic in both directions of the flow.

Note:  Click “+” to create multiple rules for filtering the required traffic, and click “+ New Source Traffic” to create multiple sources with filtering options.

8. Click on the Application Metadata tab.
9. In the Destination Traffic section, click + Add New to create an exporter to receive application-specific traffic. You can only create a maximum of 5 exporters. Enter the following details:

Option

Mandatory

Default

Description

Tool Name

Yes



Configures the alias name for the tool.

IP Interface

Yes



Configures the IP interface on the Gigamon device that connects to the tool.

Tool IP Address

Yes



Configures the destination IP address for exporting the records.

Template

No



Configures pre-defined tool templates for exporting metadata. Tool templates are user configurable. Ex.

SplunkMetadataTemplate, SecurityPostureTemplate etc.

L4 Source Port

Yes



Configures the Source Port of the IP interface on the Gigamon device.

L4 Destination Port

Yes



Configures the destination port on the tools side.

Application ID

No

Disabled

Configures exporting Application Name for all applications identified by the DPI engine.

Note: Requires AMI/SVP/ZTA license.

Application List

No



Each exporter can be customized to export metadata for certain applications/ protocols.

Format

Yes



Options: NetFlow, CEF

Configures the format for exporting the records.

Version

Yes

IPFIX

Options: v5, v9 and IPFIX.

Configures the version of NetFlow for exporting the records.

Template Refresh Interval

Yes

60s

Range: 1-216000s

Configures the interval at which the template record is exported while exporting the IPFIX records.

Changing the refresh interval can impact ingesting the records on the tools side. Please seek guidance from your tool’s vendor before changing the default.

Record Type

Yes

Cohesive/ Segregated

Default depends on the Flow Behavior configuration.

● Segregated: Default when the Flow Behavior is set to Unidirectional. Separate records are exported for network and application metadata.
● Cohesive: Default when the Flow Behavior is set to Bidirectional. Generates consolidated record comprising of network and application metadata.

If record size exceeds the IP interface MTU, the records will be exported as fragments.

Active Timeout



Yes



60s



Range: 1-604800s

. This option configures the timeout interval for exporting interim records for such flows.

Shorter timeouts increase the no. of records and longer timeouts result in fewer records. Longer timeouts can also increase the record size. Please seek expert guidance from Gigamon and tool vendor before changing the default.

Inactive Timeout

Yes

15s

Range: 1-604800s

Configures the timeout interval for marking flows as inactive and exporting their records soon after.

Inactive timeout constitutes idle time after receiving the last packet. Shorter timeouts can prematurely deem a flow as inactive and subsequent packets would be considered as a new flow that can skew the analytics on the tools side.

Please seek expert guidance from Gigamon and tool vendor before changing the default.
10. In the Advanced Settings > Collects section, the following details are already configured.

Note:  When the template is NetFlow v5 or when the format is NetFlow and the version as V5 you cannot modify the Collects.

Note:  The GTP -U collects are disabled if the template is the Netflow v9 .

Collect Fields

Attributes

Default Export

Notes

Data Link

Source MAC

No



Destination MAC

No



VLAN

No



Interface

Input Interface

No

Supported values: 2B, 4B

The default value is 2B for NetFlow v5 and 4B for NetFlow v9, IPFIX, and CEF. CEF supports exporting the Input interface index with a width of 2B (default) or 4B.

Output Interface

No

Supported values: 2B, 4B

The default value is 2B for NetFlow v5 and 4B for NetFlow v9, IPFIX, and CEF. CEF supports exporting the Output interface index with a width of 2B (default) or 4B.

Input Name Width

No

Range: 1B to 32B

The Default value is 16B.

IPv4



Source Address

Yes



Destination Address

Yes



TOS

No



DSCP

No



Protocol

Yes



Header Length

No



Payload Length

No



Total Length

No



Precedence

No



TTL

No



Option Map

No



Fragmentation ID

No



Fragmentation Offset

No



Fragmentation Flags

No



IPv6

Source Address

Yes



Destination Address

Yes



Extension Map

No



Next Header

Yes



Flow Label

No



Precedence

No



Traffic Class

No



DSCP

No



Hop Limit

No



Fragmentation ID

No



Fragmentation Offset

No





Fragmentation Flags

No



Header Length

No



Total Length

No



Payload Length

No



Transport

Source Port

Yes

Corresponds to both TCP and UDP.

Destination Port

Yes

Corresponds to both TCP and UDP.

TCP ACK Number

No



TCP Header Length

No



TCP Sequence Number

No



TCP Urgent Pointer

No



TCP Flags

No

All flags (viz., SYN, ACK, FIN, RST, PSH, URG, CWR, ECN) are supported from 6.9 version. Flags are exported in bitmap format as recommended by IANA - hex format for IPFIX and decimal format for CEF. The decimal format in CEF must be converted to hex format on the collector to decipher the bitmapping of the flags.

Refer to TCP Flags Bitmap Example.

TCP Window Size

No



UDP Message Length

No



MSS

No

Maximum payload size a TCP segment can carry without the headers. The MSS value is exported at the beginning of a flow. Its exported only when bidirectional flows are configured. This is supported only in Gen 3 GigaSMART cards and GigaVUE V Series.

Aggregate Window Size

No

The actual minimum, mean, and maximum TCP window size values, calculated separately for both sender and receiver packets for a given flow per export interval. Its exported only when bidirectional flows are configured. This is supported only in Gen 3 GigaSMART cards and GigaVUE V Series.

Zero Window

No

This captures TCP zero window event statistics (zero window, zero window probe and zero window acknowledgment) for both sender and receiver, indicating when the TCP receive buffer is full and data transmission is temporarily paused due to flow control for a given flow per export interval. Its exported only when bidirectional flows are configured. This is supported only in Gen 3 GigaSMART cards and GigaVUE V Series.

ICMP

ICMP Code

No

Corresponds to types IPv4 and IPv6.

ICMP Type

No

Corresponds to types IPv4 and IPv6.

Counter

Bytes

Yes

Options: 32, 64 (default)

Determines the length of the counters, 32B or 64B. NetFlow v5 supports only 32B.

Packets

Yes

Options: 32, 64 (default)

Timestamp

System Uptime First

Yes

Difference between the flow start time and the GigaSMART® uptime in milliseconds.

System Uptime Last

Yes

Difference between the flow end time and the GigaSMART® uptime in milliseconds.

Flow Start

Yes (msec)



Flow End

Yes (msec)



Flow

End Reason

Yes

Inner flow end reason – TCP ack, reset, inactive, etc.
11. Click Save.

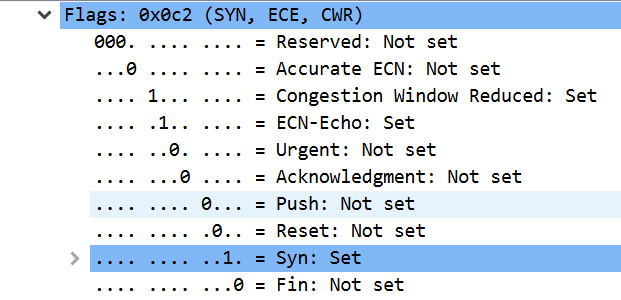

1 TCP Flags Bitmap Example

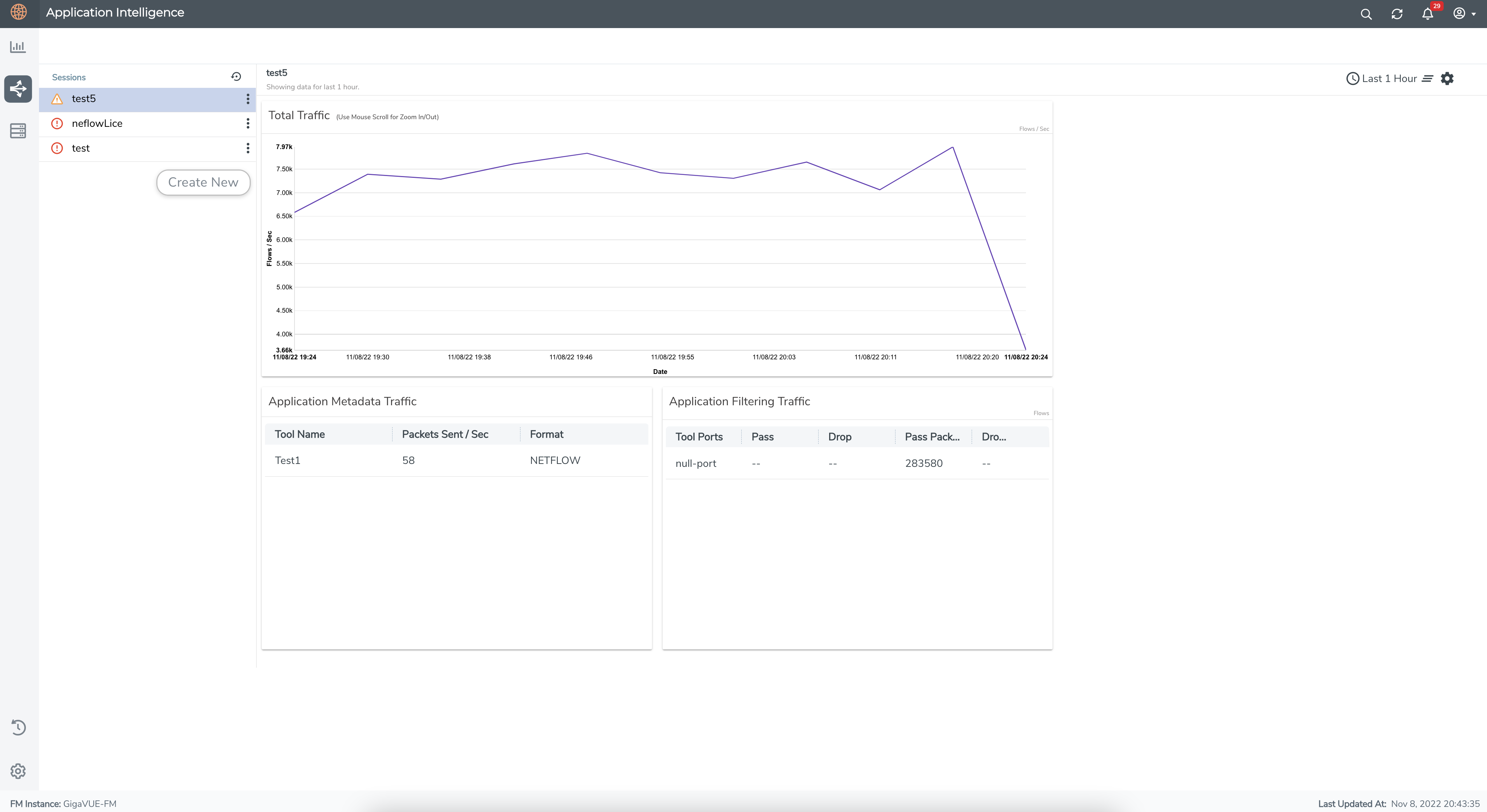

NetFlow Dashboard

In Appviz, only the traffic statistics are displayed as applications cannot be configured and used in the NetFlow configuration.

NetFlow/IPFIX Feature Compatibility

The table below shows feature compatibility between NetFlow/IPFIX features and devices.

Netflow/IPFIX Features

Gen 2 GigaSMART

Gen 3 GigaSMART

IPv4/IPv6 Traffic

Supported

Supported

Tunnel Traffic(Supported tunnels are L2GRE, VXLAN, ERSPAN, GTP and MPLS)

Not Supported

Supported

Application Attributes

Supports exporting attributes for the following protocols: HTTP, SSL/TLS and DNS.

Not Supported.

It is recommended to use AMI license for exporting application attributes.

Packet Fragmentation Support

Supported

Supported

Packets Sampling

Supported

Not Supported

Export Input and Output Interface Index

Supported

Supported

Export Remote Management IP and Input Interface Name

Supported

Not Supported

SNMP Support for exporter

Supported

Supported

No. of Exporters

6

5

Exporter Filter

Supported

Not Supported

Exporter Formats

NetFlow v5/v9, IPFIX and CEF

NetFlow v5/v9, IPFIX and CEF

Exporter Protocol

UDP and TCP

UDP

Cache Size

HC3-Gen2 (C05): 12M

HC1-Gen2: 4M

All Platforms: 1M (SSL only)

HC3-Gen3 (C08): 10M

HC1P Gen3 (HC1A-R): 10M

HC1P Gen3 (HC1-S): 10M

HC1 Gen3 (HC1-S): 2M

Transit Map

Not Supported

Supported

Enhanced TCP Insights*

Not Supported

Not Supported

Note:  *Enhanced TCP Insights include MSS, Aggregate Window Size and Zero Window.
