Inserting a Fan Tray

You can insert the entire fan tray using the following procedure.

To insert a fan tray:

1.

Remove all fan modules from the fan tray. Refer to the procedure for Removing a Fan Module.

2.

Place the empty fan tray into the slot and slide it in. Refer to 1 Fan Tray Insertion.

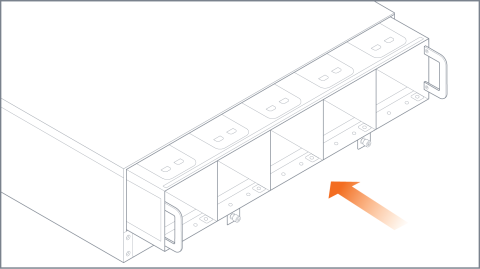

1

Fan Tray Insertion

3.

Slide the fan tray in until it is flush with the chassis rear; it will not slide in any further as shown in 2 Fan Tray Inserted.

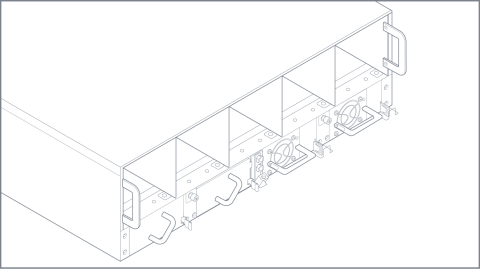

2

Fan Tray Inserted

4.

Insert the fan modules into the fan tray one at a time, as shown in 3 Fan Module Insertion.

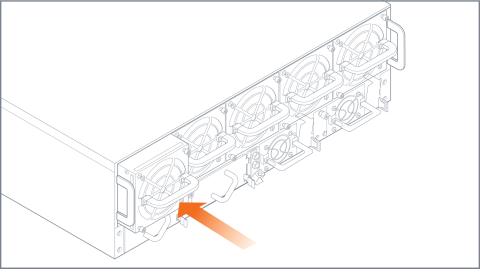

3

Fan Module Insertion

5.

Tighten the thumb screws on each fan module, then use a Phillips screwdriver to tighten the screws. Refer to 1 Fan Module Screw Location on GigaVUE‑HC3 Rear.

6.

Tighten the thumb screws on the fan tray, then use a Phillips screwdriver to tighten the screws. Refer to 1 Fan Tray Screw Location on GigaVUE‑HC3 Rear.
