Analytics Dashboard for UCT-C

Analytics dashboards allow users to monitor the physical and virtual environment and detect anomalous behavior, and plan accordingly.

The UCT-C dashboard provides comprehensive insights into the Policy level, Pod level and Volume statistics. You can monitor both trend and total stats for pods associated with a selected policy and policies linked to a selected pod, within a specified time range.

How to Access the Dashboards

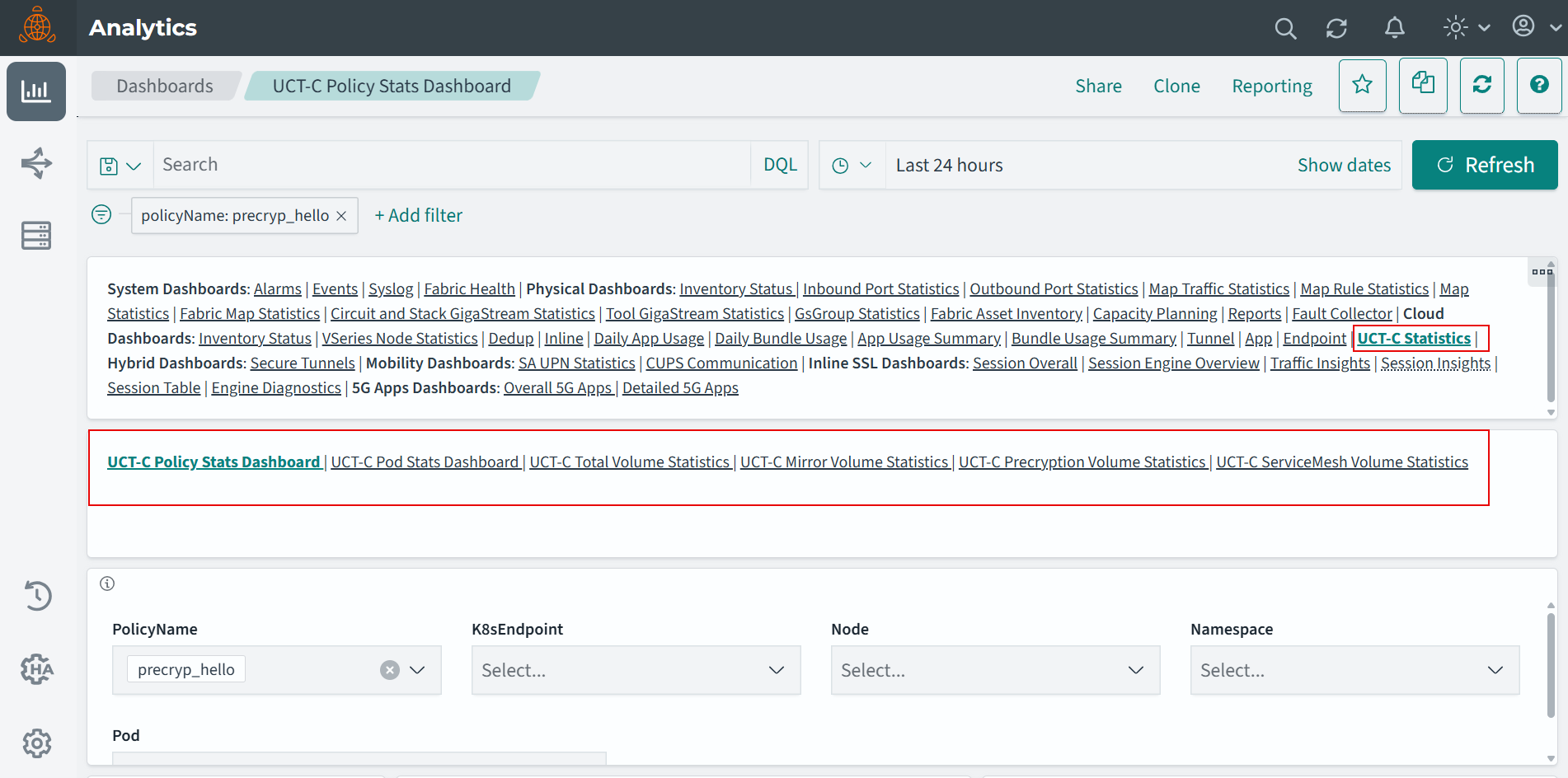

To access the UCT-C dashboards,

  1. Go to -> Analytics -> Dashboards.
  2. Select UCT-C Statistics from the System Dashboard section.
  3. The Dashboards page displays the following statistical dashboards.
    1. UCT-C Policy Statistics Dashboard
    2. UCT-C Pod Statistics Dashboard
    3. UCT-C Total Volume Statistics Dashboard
    4. UCT-C Mirror Volume Statistics Dashboard
    5. UCT-C Precryption Volume Statistics Dashboard
    6. UCT-C ServiceMesh Volume Statistics Dashboard

Note:  Ensure that your UCT-C and GigaVUE-FM are time synchronized or configure NTP time synchronization.

UCT-C Policy Statistics Dashboard

  1. On the Dashboard, select UCT-C Policy Stats Dashboard to view visualizations for Policy statistics.
  2. From the drop-down menu, select the Policy name.
    The drop-down lists of K8sEndpoint, Node, Namespace, and Poddynamically display the linked cluster, node, namespace, and pod details.
  3. Select the required details to view the visualizations.

Note:  You can only select a maximum of 10 pods. You can maximize the visualizations panel and click Add Filter option to edit or add the Pod details.

UCT-C Policy Statistics- Displays the detailed visualizations for Policy level UCT-C statistics.

The following table lists the various Policy Statistics visualizations:

Table 1: UCT-C Policy Stats Dashboard

Visualizations

Details

UCT-C Policy Stats - Total Ingress Packets (Max 10)

Displays the total aggregate value of the ingress packets associated with the selected policy.



UCT-C Policy Stats - Total Egress Packets (Max 10)

Displays the total aggregate value of the egress packets associated with the selected policy.

UCT-C Policy Stats - Total Ingress Bytes (Max 10)

Displays the total aggregate value of the ingress bytes associated with the selected policy.

UCT-C Policy Stats - Total Egress Bytes (Max 10)

Displays the total aggregate value of the egress bytes associated with the selected policy.

UCT-C Policy Stats - Total Ingress Dropped (Max 10)

Displays the total aggregate value of the ingress packets dropped associated with the selected policy.

UCT-C Policy Stats - Total Egress Dropped (Max 10)

Displays the total aggregate value of the egress packets dropped associated with the selected policy.

UCT-C Policy Stats - Total Ingress Errors (Max 10)

Displays the total aggregate value of the ingress errors associated with the selected policy.

UCT-C Policy Stats - Total Egress Errors (Max 10)

Displays the total aggregate value of the egress errors associated with the selected policy.

UCT-C Policy Stats - Ingress Packets Trend (Max 10)

Displays the Ingress Packets Trend details for each pod associated with the selected policy.

UCT-C Policy Stats - Egress Packets Trend (Max 10)

Displays the Egress Packets Trend details for each pod associated with the selected policy.

UCT-C Policy Stats - Ingress Bytes Trend (Max 10)

Displays the Ingress Bytes Trend details for each pod associated with the selected policy.

UCT-C Policy Stats - Egress Bytes Trend (Max 10)

Displays the Egress Bytes Trend details for each pod associated with the selected policy.

UCT-C Policy Stats - Ingress Dropped Trend (Max 10)

Displays the Ingress Dropped Trend details for each pod associated with the selected policy.

UCT-C Policy Stats - Egress Dropped Trend (Max 10)

Displays the Egress Dropped Trend details for each pod associated with the selected policy.

UCT-C Policy Stats - Ingress Errors Trend (Max 10)

Displays the Ingress Errors Trend details for each pod associated with the selected policy.

UCT-C Policy Stats - Egress Errors Trend (Max 10)

Displays the Egress Error Trend details for each pod associated with the selected policy.

UCT-C Pod Statistics Dashboard

  1. On the Dashboard, select UCT-C Pod Stats Dashboard to view visualizations for Pod statistics
  2. From the drop-down menu, select the Pod name.
    The drop-down lists of K8sEndpoint and Node filters that dynamically display the linked cluster, node, namespace, and pod details.
  3. Select the required details to view the visualizations.

Note:  You can only select a maximum of 10 policies. You can maximize the visualizations panel and click Add Filter option to edit or add the Policy details.

UCT-C Pod Statistics- Displays the detailed visualizations for Pod level UCT-C statistics.

The following table lists the various Pod Statistics visualizations:

Table 2: UCT-C Pod Stats Dashboard

Visualizations

Details

UCT-C Pod Stats - Total Ingress Packets (Max 10)

Displays the total aggregate value of the ingress packets associated with the selected pod.



UCT-C Pod Stats - Total Egress Packets (Max 10)

Displays the total aggregate value of the egress packets associated with the selected pod.

UCT-C Pod Stats - Total Ingress Bytes (Max 10)

Displays the total aggregate value of the ingress bytes associated with the selected pod.

UCT-C Pod Stats - Total Egress Bytes (Max 10)

Displays the total aggregate value of the egress bytes associated with the selected pod.

UCT-C Pod Stats - Total Ingress Dropped (Max 10)

Displays the total aggregate value of the ingress packets dropped associated with the selected pod.

UCT-C Pod Stats - Total Egress Dropped (Max 10)

Displays the total aggregate value of the egress packets dropped associated with the selected pod.

UCT-C Pod Stats - Total Ingress Errors (Max 10)

Displays the total aggregate value of the ingress errors associated with the selected pod.

UCT-C Pod Stats - Total Egress Errors (Max 10)

Displays the total aggregate value of the egress errors associated with the selected pod.

UCT-C Pod Stats - Ingress Packets Trend (Max 10)

Displays the Ingress Packets Trend details for each policy associated with the selected pod.

UCT-C Pod Stats - Egress Packets Trend (Max 10)

Displays the Egress Packets Trend details for each policy associated with the selected pod.

UCT-C Pod Stats - Ingress Bytes Trend (Max 10)

Displays the Ingress Bytes Trend details for each policy associated with the selected pod.

UCT-C Pod Stats - Egress Bytes Trend (Max 10)

Displays the Egress Bytes Trend details for each policy associated with the selected pod.

UCT-C Pod Stats - Ingress Dropped Trend (Max 10)

Displays the Ingress Dropped Trend details for each policy associated with the selected pod.

UCT-C Pod Stats - Egress Dropped Trend (Max 10)

Displays the Egress Dropped Trend details for each policy associated with the selected pod.

UCT-C Pod Stats - Ingress Errors Trend (Max 10)

Displays the Ingress Errors Trend details for each policy associated with the selected pod.

UCT-C Pod Stats - Egress Errors Trend (Max 10)

Displays the Egress Error Trend details for each policy associated with the selected pod.

UCT-C Total Volume Statistics Dashboard

  1. On the Dashboard, select UCT-C Total Volume Statistics Dashboard to view visualizations for Total Volume Statistics.
  2. From the drop-down menu, select the K8sEndpoint that dynamically display the linked node details.
  3. Select the required details to view the visualizations.

UCT-C Total Volume Statistics- Displays the detailed visualizations for Total VolumeUCT-C statistics.

The following table lists the various Total Volume Statistics visualizations:

Table 3: UCT-C Total Volume Statistics Dashboard

Visualizations

Details

UCT-C Total Volume Stats: Ingress Bits[Max 50]

Displays the total number of ingress bits for Mirror, Precryption, and Service Mesh traffic based on the chosen filter (Includes up to 50 nodes)


UCT-C Total Volume Stats: Egress Bits[Max 50]

Displays the total number of egress bits for Mirror, Precryption, and Service Mesh traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C Total Volume Stats: Ingress Packets[Max 50]

Displays the total number of ingress packets for Mirror, Precryption, and Service Mesh traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C Total Volume Stats: Egress Packets[Max 50]

Displays the total number of egress packets for Mirror, Pre-cryption, and Service Mesh traffic based on the chosen filter (Includes up to 50 nodes).

UCT-C Mirror Volume Stats: Ingress Bits[Max 50]

Displays the total number of ingress bits for Mirror traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C Mirror Volume Stats: Egress Bits[Max 50]

Displays the total number of egress bits for Mirror traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C Mirror Volume Stats: Ingress Packets[Max 50]

Displays the total number of Ingress packets for Mirror traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C Mirror Volume Stats: Egress Packets[Max 50]

Displays the total number of egress packets for Mirror traffic based on the chosen filter (Includes up to 50 nodes).

UCT-C Precryption Volume Stats: Ingress Bits[Max 50]

Displays the total number of ingress bits for Precryption traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C Precryption Volume Stats: Egress Bits[Max 50]

Displays the total number of egress bits for Precryption traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C Precryption Volume Stats: Ingress Packets[Max 50]

Displays the total number of Ingress packets for Precryption traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C Precryption Volume Stats: Egress Packets[Max 50] Displays the total number of egress packets for Precryption traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C ServiceMesh Volume Stats: Ingress Bits[Max 50] Displays the total number of ingress bits for Service Mesh traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C ServiceMesh Volume Stats: Egress Bits[Max 50] Displays the total number of egress bits for Service Mesh traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C ServiceMesh Volume Stats: Ingress Packets[Max 50] Displays the total number of Ingress packets for Service Mesh traffic based on the chosen filter (Includes up to 50 nodes).
UCT-C ServiceMesh Volume Stats: Egress Packets[Max 50] Displays the total number of egress packets for Service Mesh traffic based on the chosen filter (Includes up to 50 nodes).

UCT-C Mirror Volume Statistics Dashboard

  1. On the Dashboard, select UCT-C Mirror Volume Statistics Dashboard to view visualizations for Mirror Volume Statistics.
  2. From the drop-down menu, select the K8sEndpoint that dynamically display the linked node details.
  3. Select the required details to view the visualizations.

UCT-C Mirror Volume Statistics - Displays the detailed visualizations for Mirror VolumeUCT-C statistics.

The following table lists the various Mirror Volume Statistics visualizations:

Table 4: UCT-C Mirror Volume Statistics Dashboard

Visualizations

Details

UCT-C Mirror: Total Rx Statistics [bps]

Displays the total ingress (Rx) bits per second(bps) mirror traffic trend based on the chosen filter (Includes up to 50 nodes).


UCT-C Mirror: Rx Statistics per Worker node [bps] Displays the total ingress (Rx) bits per second(bps) mirror traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).
UCT-C Mirror: Total Rx Statistics [pps] Displays the total ingress (Rx) packets per second(pps) mirror traffic trend based on the chosen filter (Includes up to 50 nodes).
UCT-C Mirror: Rx Statistics per Worker node [pps] Displays the total ingress (Rx) packets per second(pps) mirror traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).

UCT-C Mirror: Total Tx Statistics [bps]

Displays the total egress (Tx) bits per second(bps) mirror traffic trend based on the chosen filter (Includes up to 50 nodes).
UCT-C Mirror: Tx Statistics per Worker node [bps] Displays the total egress (Tx) bits per second(bps) mirror traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).
UCT-C Mirror: Total Tx Statistics [pps] Displays the total egress (Tx) packets per second(pps) mirror traffic trend based on the chosen filter (Includes up to 50 nodes).
UCT-C Mirror: Tx Statistics per Worker node [pps] Displays the total egress (Tx) packets per second(pps) mirror traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).

UCT-C Precryption Volume Statistics Dashboard

  1. On the Dashboard, select UCT-C Precryption Volume Statistics Dashboard to view visualizations for Precryption Volume Statistics.
  2. From the drop-down menu, select the K8sEndpoint that dynamically display the linked node details.
  3. Select the required details to view the visualizations.

UCT-C Precryption Volume Statistics Dashboard - Displays the detailed visualizations for Precryption VolumeUCT-C statistics.

The following table lists the various Precryption Volume Statistics visualizations:

Table 5: UCT-C Precryption Volume Statistics Dashboard

Visualizations

Details

UCT-C Precryption: Total Rx Statistics [bps]

Displays the total ingress (Rx) bits per second(bps) Precryption traffic trend based on the chosen filter (Includes up to 50 nodes).
UCT-C Precryption: Rx Statistics per Worker node [bps] Displays the total ingress (Rx) bits per second(bps) Precryption traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).
UCT-C Precryption: Total Rx Statistics [pps] Displays the total ingress (Rx) packets per second(pps) Precryption traffic trend based on the chosen filter (Includes up to 50 nodes).
UCT-C Precryption: Rx Statistics per Worker node [pps] Displays the total ingress (Rx) packets per second(pps) Precryption traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).

UCT-C Precryption: Total Tx Statistics [bps]

Displays the total egress (Tx) bits per second(bps) Precryption traffic trend based on the chosen filter (Includes up to 50 nodes).
UCT-C Precryption: Tx Statistics per Worker node [bps] Displays the total egress (Tx) bits per second(bps) Precryption traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).
UCT-C Precryption: Total Tx Statistics [pps] Displays the total egress (Tx) packets per second(pps) Precryption traffic trend based on the chosen filter (Includes up to 50 nodes).
UCT-C Precryption: Tx Statistics per Worker node [pps] Displays the total egress (Tx) packets per second(pps) precryption traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).

UCT-C ServiceMesh Volume Statistics Dashboard

  1. On the Dashboard, select UCT-C ServiceMesh Volume Statistics Dashboard to view visualizations for Service Mesh volume statistics.

  2. From the drop-down menu, select the K8sEndpoint that dynamically display the linked node details.

  3. Select the required details to view the visualizations.

UCT-C ServiceMesh Volume Statistics Dashboard - Displays the detailed visualizations for ServiceMesh VolumeUCT-C statistics.

The following table lists the various ServiceMesh Volume Statistics visualizations:

Table 6: UCT-C ServiceMesh Volume Statistics Dashboard

Visualizations

Details

UCT-C ServiceMesh: Total Rx Statistics [bps]

Displays the total ingress (Rx) bits per second(bps) ServiceMesh traffic trend based on the chosen filter (Includes up to 50 nodes).
UCT-C ServiceMesh: Rx Statistics per Worker node [bps] Displays the total ingress (Rx) bits per second(bps) ServiceMesh traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).
UCT-C ServiceMesh: Total Rx Statistics [pps] Displays the total ingress (Rx) packets per second(pps) ServiceMesh traffic trend based on the chosen filter (Includes up to 50 nodes).
UCT-C ServiceMesh: Rx Statistics per Worker node [pps] Displays the total ingress (Rx) packets per second(pps) ServiceMesh traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).

UCT-C ServiceMesh: Total Tx Statistics [bps]

Displays the total egress (Tx) bits per second(bps) ServiceMesh traffic trend based on the chosen filter (Includes up to 50 nodes).
UCT-C ServiceMesh: Tx Statistics per Worker node [bps] Displays the total egress (Tx) bits per second(bps) ServiceMesh traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).
UCT-C ServiceMesh: Total Tx Statistics [pps] Displays the total egress (Tx) packets per second(pps) ServiceMesh traffic trend based on the chosen filter (Includes up to 50 nodes).
UCT-C ServiceMesh: Tx Statistics per Worker node [pps] Displays the total egress (Tx) packets per second(pps) ServiceMesh traffic trend per worker node based on the chosen filter (Includes up to 50 nodes).
