Attributes for GigaVUE Enriched Metadata for Cloud Workloads

This section describes the various attributes available within GigaVUE Enriched Metadata for Cloud Workloads for the following platforms:

AWS
Azure
VMware vCenter

Kubernetes

The following table defines the purpose and scope of each referenced dataset, detailing configuration, resource, and operational parameters across AWS, Azure, and Kubernetes environments to support multi-cloud infrastructure documentation.

AWS

Attribute	Description	Source	Destination
aws_instance_id	ID of the EC2 instance	ü	ü
aws_instance_type	Type of EC2 instance	ü	ü
aws_availability_zone	Availability Zone of the EC2 instance	ü	ü
aws_image_id	ID of the base image use for EC2 instance	ü	ü
aws_private_dns_name	Private DNS hostname name assigned to the EC2 instance	ü	ü
aws_private_ip	Private IPv4 address assigned to the EC2 instance	ü	ü
aws_public_dns_name	Public DNS name assigned to the EC2 instance	ü	ü
aws_public_ip	Public IPv4 address assigned to the EC2 instance	ü	ü
aws_instance_state	Current state of the EC2 instance	ü	ü
aws_subnet_id	ID of the subnet in which the EC2 instance is running	ü	ü
aws_vpc_id	ID of the VPC in which the EC2 instance is running	ü	ü
aws_iam_instance_profile_arn	Amazon Resource Name (ARN) of the IAM instance profile	ü	ü
aws_iam_instance_profile_id	ID of the IAM instance profile	ü	ü
aws_security_group_name	Security group name assigned for the EC2 instance	ü	ü
aws_security_group_id	Security group ID assigned for the EC2 instance	ü	ü
aws_network_if_id	ID of the network interface	ü	ü
aws_network_if_attach_id	ID of the network interface attachment	ü	ü
aws_tags	Tags assigned to the EC2 instance in kv format with kv delimiter ':' and pair delimiter ','	ü	ü
aws_flat_tags	Tags assigned to the EC2 instance extracted to top level keys and values	ü	ü
aws_owner_id	ID of the AWS account that created the network interface	ü	ü
workload_platform	Platform Name - AWS	ü	ü

Azure

Attribute	Description	Source	Destination
azure_subscription_id	Subscription ID of the Azure account that created the VM	ü	ü
azure_resource_group	Resource Group of the VM	ü	ü
azure_vm_id	Complete path of the Azure VM. This includes subscription	ü	ü
azure_instance_id	Instance ID of the Azure VM	ü	ü
azure_instance_type	Instance type of the Azure VM	ü	ü
azure_availability_zone	Availability zone of the Azure VM	ü	ü
azure_image_id	Image ID of the Azure VM	ü	ü
azure_private_dns_name	Private DNS name assigned to the VM instance	ü	ü
azure_private_ip	Private IP address assigned to the VM instance	ü	ü
azure_public_dns_name	Public DNS name assigned to the VM instance	ü	ü
azure_public_ip	Public IP address assigned to the VM instance	ü	ü
azure_instance_state	Current state of the VM instance	ü	ü
azure_subnet_id	Subnet ID of the VM instance	ü	ü
azure_vnet_id	ID of the VNET in which the VM instance is running	ü	ü
azure_network_if_id	ID of the network interface	ü	ü
azure_network_if_attach_id	ID of the network interface attachment	ü	ü
azure_tags	Tags assigned to the VM instance in kv format with kv delimiter ':' and pair delimiter ','	ü	ü
azure_flat_tags	Tags assigned to the VM instance extracted to top level keys and values	ü	ü
azure_owner_id	Owner of the VM instance	ü	ü
azure_location	Resource Location	ü	ü
azure_scaleset_name	Scale set name	ü	ü
azure_scaleset_mode	Scale set orchestration mode	ü	ü
workload_platform	Platform Name - Azure	ü	ü

VMware vCenter

Attribute	Description	Source	Destination
vmware_vm_name	Name of the guest VM	ü	ü
vmware_vm_network	Network name of the guest VM	ü	ü
vmware_vm_status	Current status of the guest VM	ü	ü
vmware_vm_tags	Tags assigned to the guest VM in kv format with kv delimiter ':' and pair delimiter ','	ü	ü
vmware_vm_flat_tags	Tags assigned to the guest VM extracted to top level keys and values	ü	ü
vmware_vm_os_family_name	OS type of the guest VM (eg: Linux)	ü	ü
vmware_vm_os_distro_name	OS distribution name of the guest VM	ü	ü
vmware_vm_os_distro_version	OS distribution version of the guest VM	ü	ü
vmware_vm_os_distro_pretty_name	OS distribution pretty name of the guest VM	ü	ü
vmware_vm_dns_host_name	Host DNS name of the guest VM	ü	ü
vmware_vm_dns_host_domain_name	Host DNS domain name of the guest VM	ü	ü
vmware_host_name	Host name of the guest VM	ü	ü
vmware_host_ip	Host IP address of the guest VM	ü	ü
vmware_datacenter_name	Datacenter name of the guest VM	ü	ü
vmware_cluster_name	Cluster name of the guest VM	ü	ü
vmware_vcenter_name	vCenter name of the guest VM	ü	ü
workload_platform	Platform Name - VMware	ü	ü

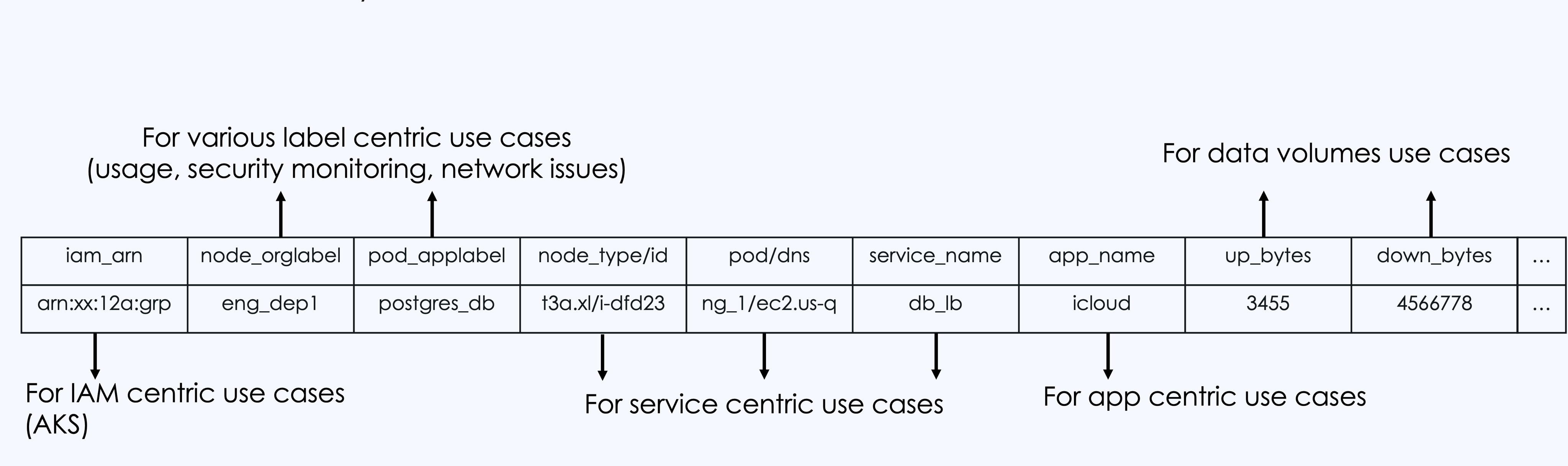

Kubernetes

Attribute	Description	Source	Destination
k8s_cluster_name	Name identifying the Kubernetes cluster	ü	û
k8s_cluster_version	Version of Kubernetes running on the cluster	ü	û
k8s_cluster_status	Operational state of the Kubernetes cluster	ü	û
k8s_node_name	Identifier for the node within the cluster	ü	û
k8s_node_internal_ip	Internal IP address assigned to the node	ü	û
k8s_node_external_ip	External IP address of the node	ü	û
k8s_node_os_version	Operating system version installed on the node	ü	û
k8s_node_os_image	Name of the OS image used by the node	ü	û
k8s_node_kernel_version	Kernel version of the node	ü	û
k8s_node_cri_version	Version of the container runtime interface used on the node	ü	û
k8s_node_status	Health and availability status of the node	ü	û
k8s_node_labels	Node labels parsed into key-value pairs for metadata enrichment	ü	û
k8s_pod_name	Name assigned to the Kubernetes pod	ü	û
k8s_pod_labels	Pod labels parsed into key-value pairs for metadata enrichment	ü	û
k8s_pod_namespace	Namespace in which the pod is deployed	ü	û
k8s_pod_status	Operational state of the pod	ü	û
k8s_pod_ip	IP address assigned to the pod	ü	û
k8s_service_name	Name of the Kubernetes service	ü	û
k8s_service_type	Type of service	ü	û
k8s_container_name	Name of the container running inside the pod	ü	û
k8s_container_image	Image used to create the container	ü	û
k8s_container_port	Container port details	ü	û
k8s_cluster_name	Name identifying the Kubernetes cluster	û	ü
k8s_cluster_version	Version of Kubernetes running on the cluster	û	ü
k8s_cluster_status	Operational state of the Kubernetes cluster	û	ü
k8s_node_name	Identifier for the node within the cluster	û	ü
k8s_node_internal_ip	Internal IP address assigned to the node	û	ü
k8s_node_external_ip	External IP address of the node	û	ü
k8s_node_os_version	Operating system version installed on the node	û	ü
k8s_node_os_image	Name of the OS image used by the node	û	ü
k8s_node_kernel_version	Kernel version of the node's operating system	û	ü
k8s_node_cri_version	Version of the container runtime interface used on the node	û	ü
k8s_node_status	Health and availability status of the node	û	ü
k8s_node_labels	Node labels parsed into key-value pairs for metadata enrichment	û	ü
k8s_pod_name	Name assigned to the Kubernetes pod	û	ü
k8s_pod_labels	Pod labels parsed into key-value pairs for metadata enrichment	û	ü
k8s_pod_namespace	Namespace in which the pod is deployed	û	ü
k8s_pod_status	Operational state of the pod	û	ü
k8s_pod_ip	IP address assigned to the pod	û	ü
k8s_service_name	Name of the Kubernetes service	û	ü
k8s_service_type	Type of service	û	ü
k8s_container_name	Name of the container running inside the pod	û	ü
k8s_container_image	Docker image used to create the container	û	ü
k8s_container_port	Container port details	û	ü
