Configure Azure Settings

This section provides information on how to customize Azure-related settings in GigaVUE‑FM to control refresh intervals, connection limits, tunnel ranges, and UCT-V behavior.

Access Advanced Azure Settings

  1. Go to Inventory > VIRTUAL > Azure.

  2. Select Settings > Advanced Settings.

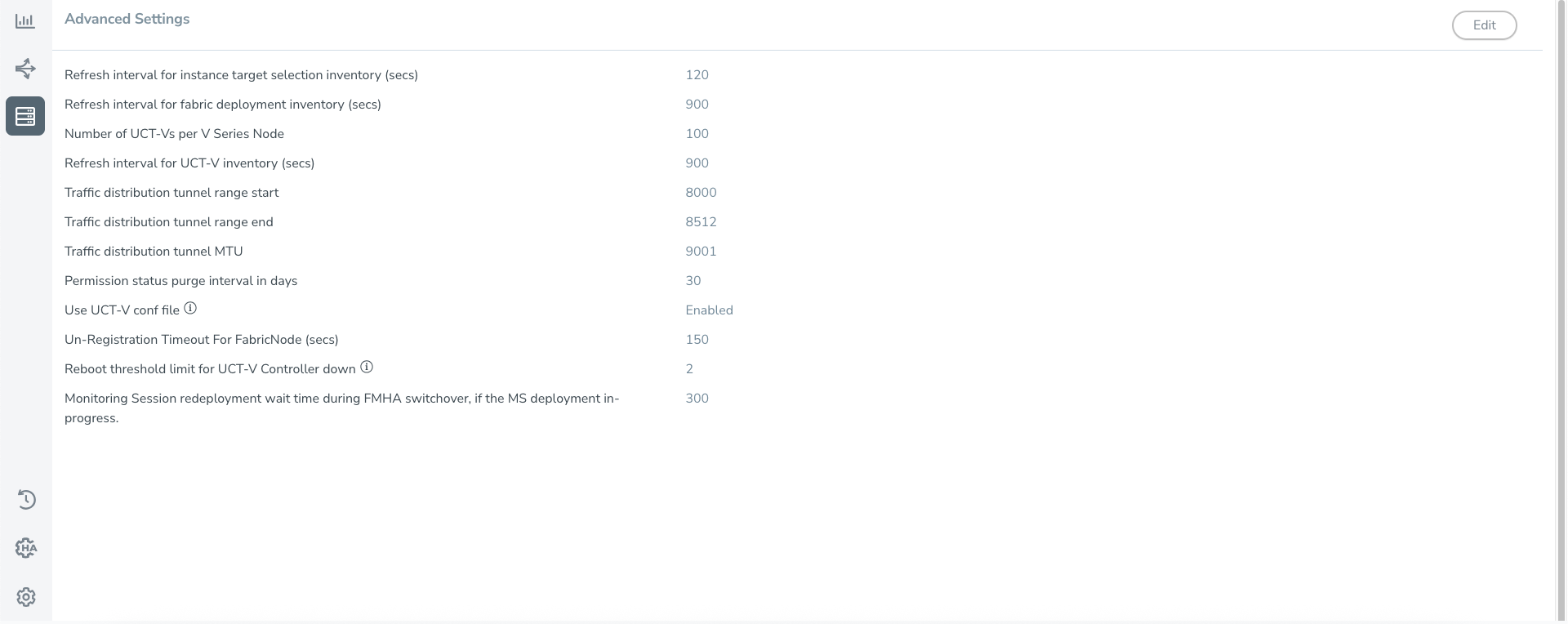

The page displays the configuration listed below.

Settings

Description

Refresh interval for VM target selection inventory(secs)

Specifies the frequency for updating the state of Virtual Machines target selection in Azure.

Refresh interval for fabric deployment inventory (secs)

Specifies the frequency for updating the state of fabric deployment information such as subnets, security groups, images, and VNets.

Number of UCT-Vs per GigaVUE V Series Node

Specifies the maximum number of instances that you can assign to the GigaVUE V Series node.

Refresh interval for UCT-V inventory (secs)

Specifies the frequency for discovering the UCT-Vs available in the VNet.

Note: When you upgrade to version 6.5 or above, GigaVUE‑FM resets the UCT-V Refresh Interval field to its default. To retain your custom value, you must manually reconfigure it.

Traffic distribution tunnel range start

Specifies the start range value of the tunnel ID.

Traffic distribution tunnel range end

Specifies the closing range value of the tunnel ID.

Traffic distribution tunnel MTU

Specifies the MTU value for the traffic distribution tunnel.

Permissions status purge interval in days

Specifies the number of days GigaVUE‑FM retains permissions report before auto purging.

Use UCT-V conf file

Enable this option to allow interface mirroring to follow the configuration defined in the file. Disable it to mirror traffic from all physical interfaces.

Note:

  • When changing the UCT-V conf file option from enabled to disabled, ensure to undeploy the Monitoring Session and delete the Monitoring Domain. Once changed, create a new Monitoring Domain and configure the Monitoring Session.
  • When changing the UCT-V conf file option from disabled to enabled, perform the following:
    1. Edit the uctv.conf file
      1. Windows: C:\ProgramData\Uctv\uctv.conf
      2. Linux: /etc/uctv/uctv.conf
    2. Delete the skipConf file from the backup folder
      1. Windows: C:\ProgramData\Uctv\bak\skipConf
      2. Linux: /var/lib/uctv/bak/skipConf
    3. Restart the UCT-V
      1. Windows: Restart from the Task Manager
      2. Linux: sudo service uctv restart

Un-Registration Timeout For FabricNode (secs)

Specify the unregistration wait time between 150 to 900 seconds to control how long GigaVUE‑FM waits before removing an unhealthy node; the default is 150 seconds.

Reboot threshold limit for UCT-V Controller down

Specifies the number of times GigaVUE‑FM tries to reach UCT-V Controller when the UCT-V Controller moves to the down state. GigaVUE‑FM retries every 60 seconds.
