Supportability and Compatibility for Inline TLS/SSL Decryption

Refer to the following sections for details:

■   Supported Platforms
■   GigaSMART Licensing
■   Supportability and Compatibility for Inline TLS/SSL Decryption
■   Port Requirements
■   GigaSMART Compatibility
■   Supportability and Compatibility for Inline TLS/SSL Decryption

Supported Platforms

Inline TLS/SSL decryption is supported on the following platforms:

■   GigaVUE‑HC1
■   GigaVUE‑HC1-Plus
■   GigaVUE‑HC3

To enable decryption, both the GigaSMART module and the inline bypass module must be installed on the same node.

GigaSMART Licensing

Required License: Subscription based TLS/SSL Decryption license.

Inline Bypass Requirements

For physical inline bypass, install a fiber bypass (BPS) combo module. On GigaVUE‑HC1, a copper TAP can also be used for physical bypass. Refer to the table for a list of supported inline bypass modules.

Model & Module Type

Description & BPS Port Pairs

GigaVUE‑HC1 PLUS

Includes:

• BPS-HC1-D25A60 (HC1-Plus)

6 × SX/SR multimode inline network port pairs

• BPS-HC1-D35C60 (HC1-Plus)

6 × LX/LR single-mode inline network port pairs

GigaVUE‑HC1 (Classic HC1 Chassis)

Includes:

• BPS‑HC1‑D25A24

2 × SX/SR multimode (50/125 μm) inline network port pairs + 4 SFP+ cages

• BPS-HC1-D25A60 (HC1-Plus)

6 × SX/SR multimode inline network port pairs

• BPS-HC1-D35C60 (HC1-Plus)

6 × LX/LR single-mode inline network port pairs

GigaVUE-HC2

Includes:

• BPS-HC0-D25A4G

4 × SX/SR (50/125 μm) multimode bypass pairs, 16 SFP/SFP+ cages

• BPS-HC0-D25B4G

4 × SX/SR (62.5/125 μm) multimode bypass pairs, 16 SFP/SFP+ cages

• BPS-HC0-D35C4G

4 × LX/LR single-mode bypass pairs, 16 SFP/SFP+ cages

• BPS-HC0-Q25A28

2 × SR4 (50/125 μm) bypass pairs, 8 SFP/SFP+ cages (40 Gb capability)

GigaVUE-HC3

Includes:

• BPS-HC3-C25F2G

2 × SR4 (40/100 Gb) BPS pairs, 16 SFP+ cages

• BPS-HC3-Q35C2G

2 × 40 Gb LR bypass pairs, 16 SFP+ cages

• BPS-HC3-C35C2G

2 × 100 Gb LR bypass pairs, 16 SFP+ cages

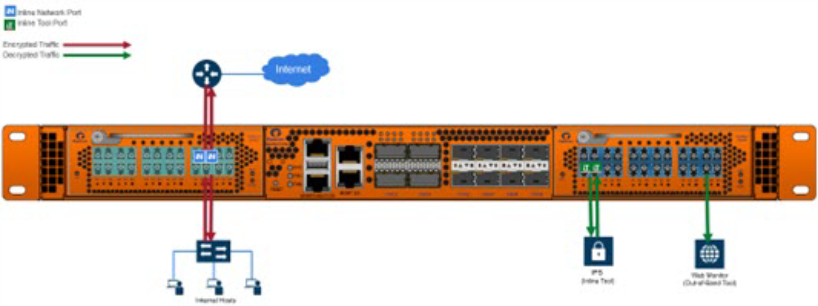

The following diagram shows a GigaVUE device with both the GigaSMART and inline bypass (BPS) modules installed:

1 GigaVUE Modules: GigaSMART and Inline Bypass
■   The GigaSMART module contains the SSL decryption software.
■   The inline network ports are located on the inline bypass module.
■   Inline and out-of-band tool ports are available on the same GigaVUE node.

Port Requirements

■   For inline traffic, both inline network and inline tool ports require two links (a port pair) to handle bidirectional traffic.
■   For out-of-band (offline) traffic, only one link is needed, as the traffic is not bidirectional.

GigaSMART Compatibility

Inline TLS/SSL decryption must be configured exclusively on a GigaSMART engine. It is not compatible with other GigaSMART operations, including Passive TLS/SSL decryption.

■   Do not share the same GigaSMART engine with other operations when using inline TLS/SSL decryption.
■   You can deploy both inbound and outbound inline TLS/SSL decryption on a single GigaSMART engine.

Note:  On GigaVUE‑HC1 nodes, Inline TLS/SSL decryption can be configured alongside other GigaSMART applications.

Supported Ciphers

Inline TLS/SSL decryption supports modern cryptographic algorithms. It supports the commonly-supported TLS 1.2 and TLS 1.3 ciphers.

Combining the following ciphers, MACs, and Key Exchange Algorithms results in many cipher suites:

■   Ciphers: AES_128_CBC, AES_128_GCM, AES_256_GCM, AES_256_CBC, Camellia, Chacha20
■   MAC: SHA, SHA256, SHA384, Poly1305
■   Key Exchange Algorithms: RSA, DHE_RSA, ECDHE_RSA, ECDHE_ECDSA.

Diffie Hellman Ephemeral (DHE) is a key exchange protocol.

Inline TLS/SSL Decryption supports key cipher suites and exchanges without downgrading cryptography levels of the organization.

Cipher suites are a standard combination of the following:

■   bulk encryption algorithm—Specifies how to encrypt communications, including the algorithm, key size, and the cryptographic mode used. For example, AES_128_CBC is AES with 128-bit keys in Cipher Block Chaining mode.
■   key exchange algorithm—Specifies how both sides authenticate each other during the TLS/SSL handshake. For example, RSA.
■   message authentication code (MAC)—Specifies the hash algorithm used to verify that communications have not been tampered with. For example, SHA.
■   pseudorandom function—Specifies how a 384-bit master secret, which is used as a source of randomness for session keys, is generated.

Notes:

  • TLS/SSL transactions with unsupported ciphers will be bypassed/TCP proxied.
  • The new TLS1.3 cipher suites are defined differently and do not specify the certificate types (RSA/DSA/ECDSA) or the key exchange mechanism (DHE/ECHDE).
  • The Inline TLS/SSL session is now equipped to receive a client hello with the key exchange X25519Kyber768 and now fall back to using just X25519. This ensures the system maintains secure and functional connections, even if it cannot use the newer, quantum-resistant algorithm now.

The following key sizes are supported:

■   RSA—2048, 3072, 4096, 8192
■   DH—1024, 2048, 4096
■   ECC—prime256v1, ecsecp256r1, ecsecp384r1, ecsecp521r1, secp160k1, secp160r1, secp160r2, secp192k1, secp192r1, secp224k1, secp224r1, secp256k1, secp256r1, secp384r1, secp521r1, brainpoolP256r1, brainpoolP384r1, brainpool512r1, X25519, X448

The following TLS extension is supported:

■   RFC7301—Application-Layer Protocol Negotiation (ALPN)
■

The below table lists the TLS S1.3 and TLS 1.2 ciphers that support Inline TLS/SSL Decryption.

Inline TLS/SSL Supported TLS 1.3 Ciphers

Cipher Name

Encryption (Enc)

MAC

TLS_AES_256_GCM_SHA384

AES_ 256_GCM

SHA384

TLS_CHACHA20_POLY1305_SHA256

CHACHA20_POLY1305

SHA256

TLS_AES_128_GCM_SHA256

AES_128_GCM

SHA256

Inline TLS/SSL Supported TLS 1.2 Ciphers

Cipher Name

Key Exchange (Kx)

Authentication(Au)

Encryption (Enc)

MAC
TLS_DHE_RSA_WITH_AES_128_CBC_SHA DHE RSA AES128_CBC SHA
TLS_DHE_RSA_WITH_AES_256_CBC_SHA DHE RSA AES256_CBC SHA
TLS_DHE_RSA_WITH_CAMELLIA_128_CBC_SHA DHE RSA CAMELLIA128 SHA
TLS_RSA_WITH_CAMELLIA_128_CBC_SHA RSA RSA CAMELLIA128 SHA
TLS_RSA_WITH_CAMELLIA_256_CBC_SHA RSA RSA CAMELLIA256 SHA
TLS_DHE_RSA_WITH_CAMELLIA_256_CBC_SHA DHE RSA CAMELLIA256 SHA
TLS_DHE_RSA_WITH_AES_128_CBC_SHA256 DHE RSA AES128_CBC SHA256
TLS_DHE_RSA_WITH_AES_256_CBC_SHA256 DHE RSA AES256_CBC SHA256
TLS_DHE_RSA_WITH_AES_128_GCM_SHA256 DHE RSA AES128_GCM SHA256
TLS_DHE_RSA_WITH_AES_256_GCM_SHA384 DHE RSA AES256_GCM SHA384
TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305 ECDHE RSA CHACAH20 POLY1305
TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305 ECDHE ECDSA CHACAH20 POLY1305
TLS_DHE_RSA_WITH_CHACHA20_POLY1305 DHE RSA CHACAH20 POLY1305
TLS_RSA_WITH_AES_128_CBC_SHA RSA RSA AES128_CBC SHA
TLS_RSA_WITH_AES_256_CBC_SHA RSA RSA AES256_CBC SHA
TLS_RSA_WITH_AES_128_CBC_SHA256 RSA RSA AES128_CBC SHA256
TLS_RSA_WITH_AES_256_CBC_SHA256 RSA RSA AES256_CBC SHA256
TLS_RSA_WITH_AES_128_GCM_SHA256 RSA RSA AES128_GCM SHA256
TLS_RSA_WITH_AES_256_GCM_SHA384 RSA RSA AES256_GCM SHA384
TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA ECDHE ECDSA AES128_CBC SHA
TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA ECDHE ECDSA AES256_CBC SHA
TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA ECDHE RSA AES128_CBC SHA
TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA ECDHE RSA AES256_CBC SHA
TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256 ECDHE ECDSA AES128_CBC SHA256
TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384 ECDHE ECDSA AES256_CBC SHA384
TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256 ECDHE RSA AES128_CBC SHA256
TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384 ECDHE RSA AES256_CBC SHA384
TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256 ECDHE ECDSA AES128_GCM SHA256
TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384 ECDHE ECDSA AES256_GCM SHA384
TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256 ECDHE RSA AES128_GCM SHA256
TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 ECDHE RSA AES256_GCM SHA384

Post-Quantum Cryptography (PQC) Cipher Support

Post-Quantum Cryptography (PQC) introduces cryptographic algorithms designed to be secure against attacks from both classical and quantum computers. This update enables devices to negotiate and process SSL/TLS sessions using PQC algorithms when performing Inline SSL decryption.

Supported Algorithms

■   Key Exchange (KEM):
o   ML-KEM (CRYSTALS-KYBER) in variants mlkem512, mlkem768, mlkem1024
o   Hybrid combinations (e.g., X25519_MLKEM768, SecP256r1_MLKEM768, SecP384r1MLKEM1024)
■   Signature Algorithms:
o   ML-DSA (CRYSTALS-DILITHIUM) in variants mldsa44, mldsa65, mldsa87

Supported Key File Types

The supported file types for Inline SSL support for Post-Quantum Cryptography (PQC) Ciphers are as follows:

■   PEM format: pq-private (for PQC private keys)
■   PKCS12 format: pq-pkcs12 (for PQC key/certificate bundles)
■   Certificate files: pq-certificate (for PQC certificates)

You can enable PQC ciphers via GigaVUE-OS CLI command apps keystore or select the Key type 'PQC' in your Inline SSL profile.

Limitations

The main limitations of the Inline TLS/SSL support for Post-Quantum Cryptography (PQC) ciphers include:

■   The FHA Inline TLS/SSL dashboard does not currently show any details related to PQC.
■   This feature does not apply when NAT/PAT needs to support multiple Client Hello messages.
■   The feature does not support client authentication with PQC algorithm certificates. If a server requests a client certificate, sessions will be bypassed, and PQC client certificates will not be intercepted..
■   HSM Luna and NCipher do not support Post-Quantum Cryptography (PQC).
■   The new PQC key type is not compatible with the GEN2 Inline SSL flex configuration.
■   This feature is also incompatible with the Classic Inline Bypass configuration.
