Rack Mounting GigaVUE‑TA25E

The GigaVUE‑TA25E consists a Rack mounting kit which has 2 front-post brackets, 2 rear-post brackets, 20 screws, and 2 ear-locking screws. To rack mount the chassis do the following:

Attach the Brackets

1.

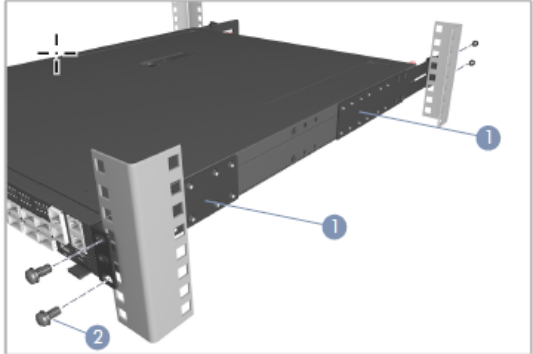

Attach each of the front- and rear-post brackets to the node using four of the included bracket screws.

2.

Use the screws and cage nuts supplied with the rack to secure the node in the rack.

Caution: Installing the switch in a rack requires two people. One person should position the switch in the rack, while the other person secures it using the rack screws.

Adjust Rear-Post Bracket Ears

1.

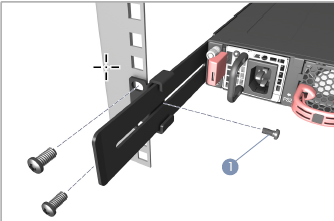

Lock the position of the rear-post bracket ears using the included position-locking screws. You can also adjust the rear-post bracket ears to fit different rack depths from 56 cm to 75 cm.
