GigaSMART Rear Module

GigaVUE‑HC2 nodes with a GigaSMART Rear module installed can take advantage of GigaSMART’s advance processing features, including masking, slicing, tunnel decapsulation, VLAN tag insertion, de-duplication, header stripping, Adaptive Packet Filtering (APF), NetFlow generation, GTP stateful filtering, and flow sampling. You can use both GigaVUE‑FM and the CLI to create GigaSMART operations combining different packet processing features, combine them with other map rule criteria, and apply them in map rules on any network port in the node.

Refer to the GigaVUE-OS CLI Reference Guide for details on the GigaSMART features.

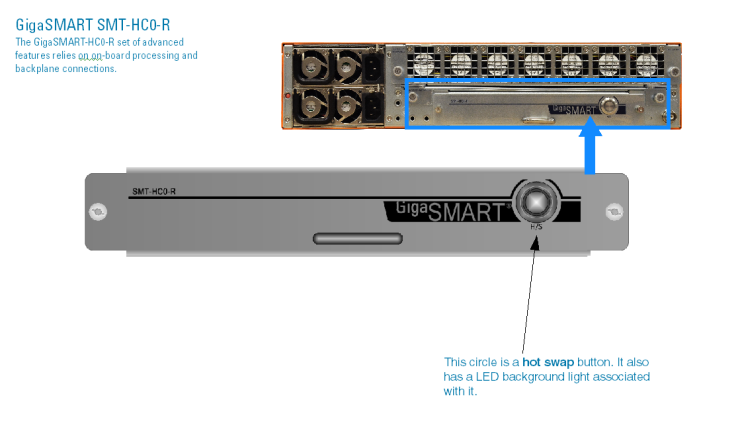

1

GigaSMART Rear Module

Hot Swap Button LED

The hot swap (H/S) button has a BLUE LED with the following states:

■

Off indicates that the module is ready to configure. When the LED is Off, the module is operating normally in the node.

■

On indicates that the module is ready to be removed.

When the H/S button is pressed on an inserted module, the LED turns solid BLUE. For the hot swap procedure, refer to Removing the Rear GigaSMART Module.
