Inserting a Fan Module

To insert a fan module:

1.

Place the working fan module into the empty fan module slot and slide it in until it is flush with the chassis rear and will not slide in any further. Refer to Figure 128: Fan Module Insertion.

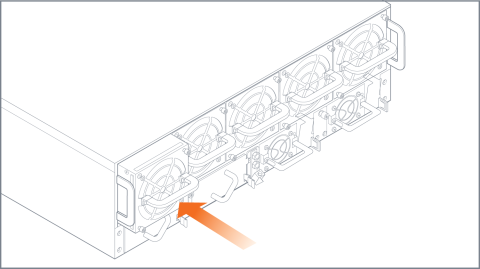

Figure 128: Fan Module Insertion

1Tighten the thumb screws on the fan module, then use a Phillips screwdriver to tighten the screws.
