GigaVUE H Series and TA Series Overview

The GigaVUE H Series and TA Series delivers performance and intelligence in each of its Traffic Visibility Fabric nodes, with port density and speeds that scale to your needs, from 1Gb to 100Gb. With an intuitive web-based interface (H-VUE or GigaVUE-FM) and a powerful CLI based GigaVUE-OS, the Visibility Fabric is able to replicate, filter, and selectively forward network traffic to monitoring, management, and security tools. The GigaVUE-FM provides a web-based centralized interface to configure and manage all of your GigaVUE nodes through a single pane of glass.

The GigaVUE H Series and TA Series nodes include the following models that run GigaVUE-OS:

• GigaVUE-HD8
• GigaVUE-HD4
• GigaVUE-HC1
• GigaVUE-HC2
• GigaVUE-HC3
• GigaVUE-HB1
• GigaVUE-TA1GigaVUE-TA10
• GigaVUE-TA10A
• GigaVUE-TA40
• GigaVUE-TA100
• GigaVUE-TA100-CXP
• GigaVUE-TA200
• Certified Traffic Aggregation White Boxes

Table 1: GigaVUE H Series and GigaVUE TA Series Nodes provides overviews of the GigaVUE H_Series and TA_Series nodes.

Table 1: GigaVUE H Series and GigaVUE TA Series Nodes






GigaVUE-HC1
• 1RU Footprint
• Built-in GigaSMART functionality
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI
• Cluster with GigaVUE H Series and GigaVUE TA Series Nodes


GigaVUE-HC2
• 2RU Footprint
• Four front-facing bays for port, TAP, BPS, and GigaSMART front modules
• One rear bay for a GigaSMART rear module
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI
• Cluster with GigaVUE H Series and GigaVUE TA Series Nodes

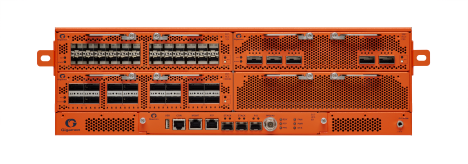

GigaVUE-HC3
• 3RU Footprint
• Four Module Slots (Bays)
• Internal Control Card
• Extension Board
• Dedicated Cluster Management Port
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI
• Supports all GigaVUE-HC3 Modules
• Cluster with GigaVUE H Series and GigaVUE TA Series Nodes

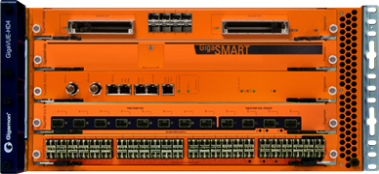

GigaVUE-HD4
• 5RU Footprint
• Four Line Card Slots
• Single Control Card
• Dedicated Cluster Management Port
• Supports all GigaVUE HD Series Line Cards
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI
• Cluster with GigaVUE H Series and GigaVUE TA Series Nodes

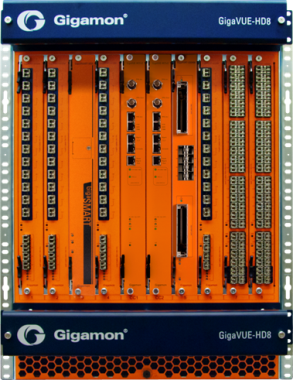

GigaVUE-HD8
• 14RU Footprint
• Eight Line Card Slots
• Dual Control Cards
• Dedicated Cluster Management Port
• Supports all GigaVUE HD Series Line Cards
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI
• Cluster with GigaVUE H Series and GigaVUE TA Series Nodes


GigaVUE-TA1
• 1RU Footprint
• Flexible 10Gb/40Gb Modes for 40Gb Ports
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI
• Cluster with GigaVUE H Series and GigaVUE TA Series Nodes


GigaVUE-TA10
• 1RU Footprint
• Flexible 10Gb/40Gb Modes for 40Gb Ports
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI
• Cluster with GigaVUE-HD8, HD4, HC2, HB1, and GigaVUE TA Series Nodes


GigaVUE-TA10
• 1RU Footprint
• Flexible 10Gb/40Gb Modes for 40Gb Ports
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI
• Cluster with GigaVUE H Series and GigaVUE TA Series Nodes


GigaVUE-TA40
• 1RU Footprint
• Flexible 10Gb/40Gb Modes for 40Gb Ports
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI
• Cluster with GigaVUE H Series and GigaVUE TA Series Nodes


GigaVUE-TA100
• 1RU Footprint
• 32 x 100Gb/40Gb Ports
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI
• Cluster with GigaVUE H Series and GigaVUE TA Series Nodes


GigaVUE-TA100 CXP
• 1RU Footprint
• 20 100Gb CXP Ports,
8 100Gb QSFP28 Ports
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI


GigaVUE-TA200
• 2RU Footprint
• 64 100Gb/40Gb ports
• Optional patch or breakout panel support
• Cluster with H Series nodes


Certified Traffic Aggregation White Box
• 1RU Footprint
• 10Gb/40Gb Ports
• Standard GigaVUE-OS CLI and GigaVUE-FM GUI
• Cluster with GigaVUE H Series and GigaVUE TA Series Nodes


Notes on TA Series Nodes
• A twenty-four (24) port GigaVUE-TA10 version, called the GigaVUE-TA10A is available with only the first 24 1Gb/10Gb ports enabled. A license is needed to expand a GigaVUE-TA10A to include all 48 1Gb/10Gb ports as well as the four (4) 40Gb ports.
• On the GigaVUE-TA100, only the first 16 out of 32 100Gb ports are enabled. Two port licenses are available to enable an additional 8 or 16 ports to expand from 16 ports to 24 ports or from 16 ports to 24 ports and then to 32 ports.
• The ports on the GigaVUE-TA100 can be used as network, tool, or hybrid ports.
• For more information about the TA Series nodes, refer to the GigaVUE TA Series Hardware Installation Guide.

For adding a physical node to GigaVUE-FM, refer to Configure Physical Nodes.
