Set Map-Sharing Permission Levels

Map-Sharing Permissions are only available to node level users. FM users cannot be added for this level of permissions. When creating maps on the node from GigaVUE-FM, admin users can add map permissions pertaining to the node level users. There are four map-sharing permission levels:

Permission Level	Description
View	Role can view the map but cannot make any changes.
Listen	Role can add or remove tool ports they own1 Requires Level 2 or Level 3 access, based on the user’s role membership.. This is equivalent to subscribing to a map.
Edit	Role can delete and edit the map, can remove any network ports, can add network ports they own1, and can add or remove tool ports they own1.
Owner	Role can perform all the Read/Write functions and assign map sharing permission levels.

To set permissions for a map, do the following:

1.

Click Physical on the top navigation bar.

2.

On the Physical Nodes page, click on a physical node.

3.

On the left navigation pane of the GigaVUE node, click Maps.

4.

Select a map.

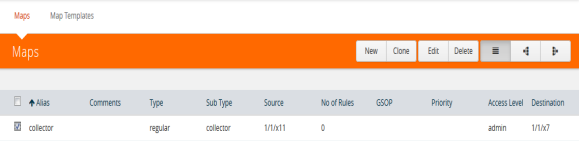

Figure 276: Maps Page

5.

Click Edit.

6.

Go to the Map Permissions section of the Edit Map page.

7.

Click in the Owner, Edit, Listen, or View field and select roles from the drop-down list.
