Access Levels on GigaVUE-FM

When in RBAC mode in GigaVUE-FM, any admin level user can add a node to the GigaVUE-FM. However, when adding the node credentials, if the node credentials do not match the privileges on the node, the admin user from GigaVUE-FM will not be able to manage the node.

To manage the node from GigaVUE-FM, the admin username and password has to match exactly the username and password on the node with the same privileges.

To understand more on the level of privileges and how to manage them on GigaVUE-FM versus on the node, refer to the Figure 272: Graphical Representation of User Databases and Management, Table 1: Access Levels from GigaVUE-FM for Scenario in Figure 1: Graphical Representation of User Databases and Management when “Use Node Credentials Entered During Add Physical Node” Button is NOT Selected, and Table 2: Access Levels from GigaVUE-FM for Scenario in Figure 1: Graphical Representation of User Databases and Management when “Use Node Credentials Entered During Add Physical Node” Button is Selected

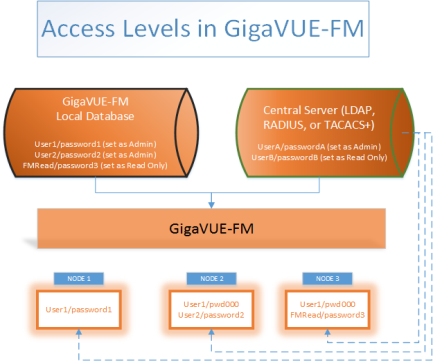

Figure 272: Graphical Representation of User Databases and Management

Table 1: Access Levels from GigaVUE-FM for Scenario in Figure 272: Graphical Representation of User Databases and Management when “Use Node Credentials Entered During Add Physical Node” Button is NOT Selected
User Privileges from GigaVUE-FM	GigaVUE-FM	Node1	Node2	Node3
GigaVUE-FM Local User Database
User1/password1 (set as Admin on GigaVUE-FM)	Admin	Admin	Read Only	No Access
User2/password2 (set as Admin on GigaVUE-FM)	Admin	No Access	Admin	No Access
FMRead/password3 (set as Read-Only on GigaVUE-FM)	Read Only	No Access	No Access	Read Only
Users on the Central Server (LDAP, RADIUS, TACACS+)
UserA/passwordA (set as Admin on GigaVUE-FM)	Admin	Admin	Admin	Admin
UserB/passwordB (set as Read Only on GigaVUE-FM)	Read Only	Read Only	Read Only	No Access
Local Node Database
User1/pwd000 (set as Admin on local Node but not set up on GigaVUE-FM)	No Access	No Access	No Access	No Access

Table 2: Access Levels from GigaVUE-FM for Scenario in Figure 272: Graphical Representation of User Databases and Management when “Use Node Credentials Entered During Add Physical Node” Button is Selected
User Privileges from GigaVUE-FM	GigaVUE-FM	Node1	Node2	Node3
GigaVUE-FM Local User Database
User1/password1 (set as Admin on GigaVUE-FM)	Admin	Admin	Admin	Admin
User2/password2 (set as Admin on GigaVUE-FM)	Admin	Admin	Admin	Admin
FMRead/password3 (set as Read-Only on GigaVUE-FM)	Read Only	Read Only	Read Only	Read Only
Users on the Central Server (LDAP, RADIUS, TACACS+)
UserA/passwordA (set as Admin on GigaVUE-FM)	Admin	Admin	Admin	Admin
UserB/passwordB (set as Read Only on GigaVUE-FM)	Read Only	Read Only	Read Only	Read Only
Local Node Database
User1/pwd000 (set as Admin on local Node but not set up on GigaVUE-FM)	No Access	No Access	No Access	No Access
