Control panel

Removing the left control panel

Follow the below steps to remove the left Control Panel:

1. Disconnect the control panel cable from the system board connector.

Note:  Ensure that you note the routing of the cables as you remove them from the system board. You must route the cables properly when you replace them to prevent the cables from being pinched or crimped.

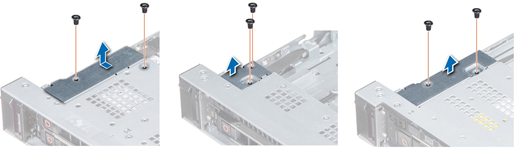

2. Using a Phillips #1 screwdriver, remove the screws that secure the cable cover.

3. Using a Phillips #1 screwdriver, remove the screws that connect the control panel to the system.

4. Holding by the sides, remove the left control panel assembly away from the system.

Installing the left control panel

Follow the below steps to install the left Control Panel:

1. Route the control panel cable through the side wall of the system.

2. Align the left control panel assembly with the control panel slot on the system and place the assembly in the slot on the system.

3. Connect the control panel cable to the system board connector.

4. Using Phillips #1 screwdriver, install the screws that secure the cable cover to the system.

After installing the left control panel you could do the following:

1. Follow the safety guidelines listed in Safety instructions.

2. Install the air shroud.

3. Install the internal PERC riser.

4. Follow the procedure listed in Before working inside your system.

Removing the Right Control Panel

Follow the below steps to remove the right Control Panel:

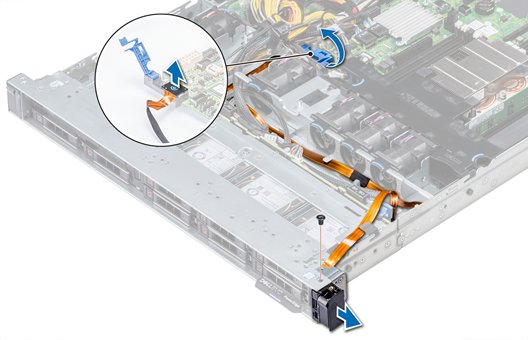

1. Lift the cable latch and disconnect the control panel cable from the connector on the system board.

Note:  Ensure that you note the routing of the cables as you remove them from the system board. You must route the cables properly when you replace them to prevent the cables from being pinched or crimped.

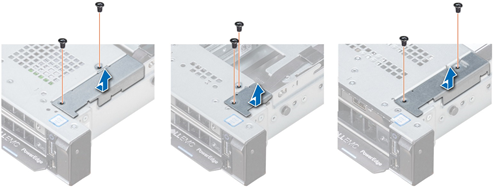

2. Using a Phillips #1 screwdriver, remove the screws that secure the cable cover to the system.

3. Using a Phillips #1 screwdriver, remove the screw that secures the control panel to the system.

4. Holding the control panel by its sides, remove the control panel away from the system.

Installing the right control panel

Follow the below steps to install the right Control Panel:

1. Route the control panel cable through the side wall of the system.

2. Align the right control panel with the control panel slot on the system and place the assembly in the slot on the system.

3. Connect the control panel cable to the connector on the system board and lower the cable latch to secure the cable in place.

4. Using a Phillips #1 screwdriver, install the screws that secure the cable cover to the system.

After installing the right control panel you could do the following:

1. Install the internal PERC riser.

2. Follow the procedure listed in After working inside your system.
