Inband Cluster Management Stack Ports

A common Inband Cluster Management topology is configured between the Layer 2 device’s Ethernet management port to a GigaVUE‑OS node using a stack port configuration.

Two or more GigaVUE‑OS nodes may be directly connected in a one-to-many relationship between physical connections. GigaVUE‑OS nodes may also be indirectly connected if there is a path of stack ports between the nodes.

Inband Cluster Management Stack Ports Example

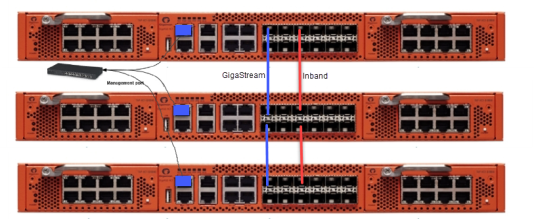

Inband Cluster Management Stack PortsThe following figure visually depicts how Inband Cluster Management uses the grouping of stack ports to connect between GigaVUE‑HC1 nodes.

Note:  Ensure that there is a physical connection between the stack ports of the two nodes that are being added to the Inband cluster.
