Control Card Installation Procedure
Use this procedure for initial installation of GigaVUE‑HC2 control cards, either the original control card or HC2 CCv2.
Important: Because there is only one control card, hot swapping is not possible.
|
1.
|
Make sure you are wearing an ESD-preventive wrist or ankle strap. |
|
2.
|
Remove the protective fan tray from the back of the unit. This opens the area to insert the control card. |
|

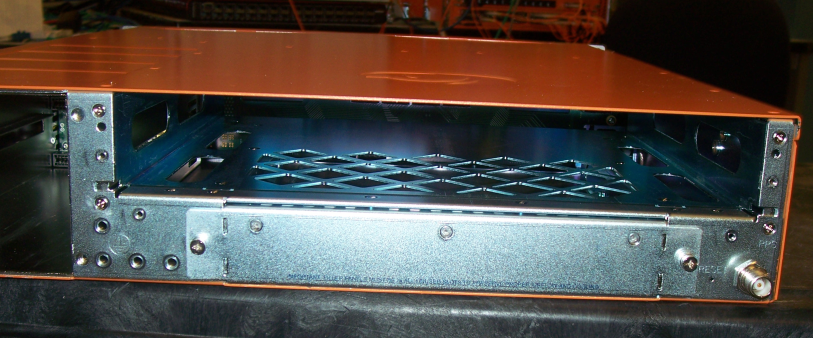

Figure 9
|
Back of Node Shows Opening for Control Card |
|
3.
|
Locate the control card and remove it from its packaging. |
|
4.
|
Carefully align the tabs at the sides of the control card rack. |
|
5.
|
Slide the control card into the guides until it is firmly connected at the back of the card. |
|

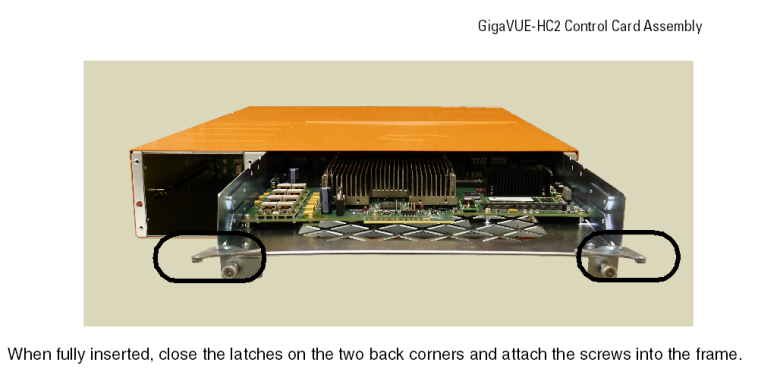

Figure 10
|
Installing Control Card to the rear of the GigaVUE‑HC2 |
This completes the installation of the control card on the GigaVUE‑HC2.
