How to Troubleshoot Partial Success Errors

If your fabric map displays a red status light on the list view page, this means a portion of the fabric map was accepted at GigaVUE‑FM level, but devices cannot provision the generated components.

The error message associated with fabric map appears when you hover over the fabric map status column. You can use the error message to help you troubleshoot and identify the components that are in conflict or mis-configured.

Example 1:

In the following example, the status error message indicates that the ports are mis-configured. You can use the following workflow as a best practice for investigating and correcting map configuration problems.

1.   Hover over the fabric map status column displaying a red status light to view the error message. The error message provides information on the possible issues present with fabric map components.

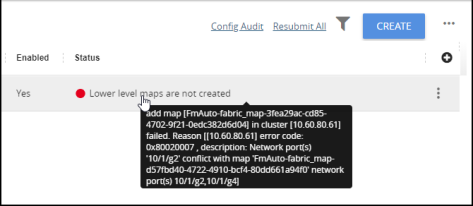

Figure 118 Troubleshooting

This error indicates that the input network ports overlapped with the existing map, and therefore it is required to correct this issue and remove the overlapping ports. Use this screen to investigate the exact ports causing the problem.

2. Click View Details from the options menu. The fabric map detail screen is displayed.

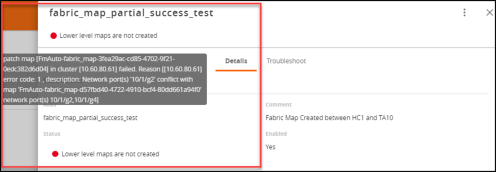

Figure 119 Fabric Maps Details
3. Click the Troubleshooting link. Scroll down the screen to investigate the Source and Destination ports configurations.

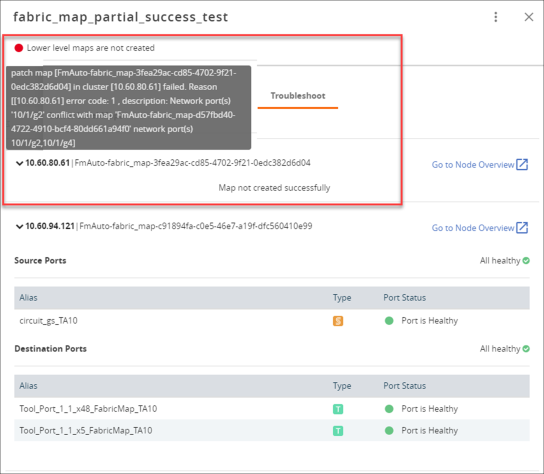

Figure 120

The network ports that you tried to add to your fabric map were not available and contributed to the error in the fabric map configuration. Next, you need to edit the network ports.

4. Click Edit from the options menu to edit the fabric map.
Figure 121 Editing Fabric Maps
5. Select the Source Ports component.

Figure 122 Source Port Component

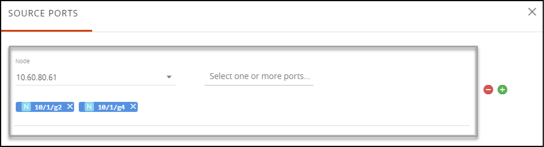

6. The Source Ports screen appear.
7. Edit the source ports with correct information and save your configuration.
8. Click Submit on the Edit Fabric Map page.

After you have successfully updated the fabric map component causing the problem, the fabric map list view displays a healthy status symbol.

If a problem with the fabric map still exists, repeat the steps above to identify and track down the problem.
