Chassis

The Chassis link opens the Chassis page shown in Chassis View. The Chassis page provides a detailed snapshot of a selected H Series node, allowing you to view cards, control cards, and ports, fan trays, and power modules on the chassis. For a detailed description of the Chassis page and views, refer to Chassis.

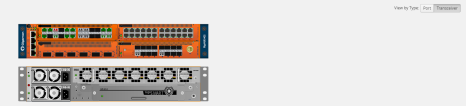

Figure 134

Chassis View
