Inserting the Control Card

To insert the control card:

1.

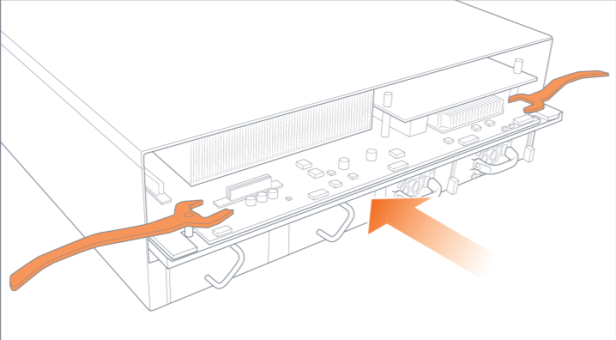

Push the control card into the chassis. Refer to Inserting the Control Card.

Figure 20

Control Card Insertion

2.

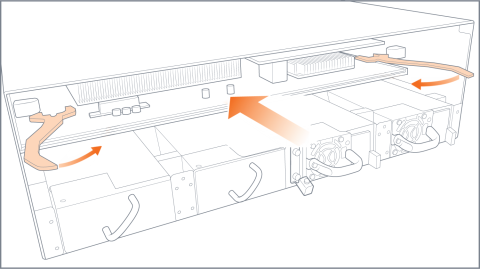

Swing both ejector handles inward as shown in Figure 2 Control Card Ejector Handles.

Figure 21

Control Card Ejector Handles

3.

Seat the control card as shown in Figure 3 Control Card Seated.

Figure 22

Control Card Seated

4.

Insert the fan tray and all the fan modules as described in Inserting a Fan Tray.
