New GigaVUE-FM GUI in 5.8
The GigaVUE-FM Graphical User Interface for software version 5.8 is enhanced for visual appeal, better navigation, and improved readability. This section provides an overview of these changes.
Refer to the following sections for details:
| • | Changes in Login Page |
| • | Changes in Landing Page |
| • | Changes in Navigation Paths |
| • | Changes in Quick Views |
| • | Changes in Icons |
Note: There are no functional and logical changes associated with these enhancements.
Changes in Login Page
The following table shows the changes in the log in page:
|
Release 5.7 |
Release 5.8 |
|
|
|
Changes in Landing Page
The following table highlights the changes to the GigaVUE-FM landing page.
|
Enhancement |
Release 5.7 |
Release 5.8 |
|
Profile: The Profiles option in the Dashboard page allows you to customize the dashboard, as required.
|
Available in the left navigation pane
|
Moved to the top navigation bar.
|
|
Customized GigaVUE-FM Instance Title You can configure an instance name for your GigaVUE-FM instance.
|
If instance name is configured, both GigaVUE-FM and the name of the instance appears.
|
If instance name is configured, then only the name of the GigaVUE-FM instance appears.
|
|
License Expiry Notification When you first open GigaVUE-FM, license expiry notification appears.
|
Appears as a pop-up message on the top navigation bar hiding the menus.
|
Appears as a separate panel just below the browser’s address bar.
|
Figure 1 Enhancements to Dashboard shows the changes to the GigaVUE-FM 5.8 landing page.
| Figure 141 | Enhancements to Dashboard |
1 - GigaVUE-FM Instance Name
2 - Profile Option (on the top navigation bar)
3 - Outlined Icons
4 - Rounded Buttons (for all GUI screens)
Changes in Navigation Paths
Navigation in GigaVUE-FM has been changed to improve usability and customer experience. Refer to the following sections for details:
| • | Physical |
| • | Administration |
Notes
| • | There are no navigation path changes to the Virtual and Cloud pages. |
| • | The pagination bar in the pages is moved to the bottom-left corner of the pages. Refer to Figure 2 Pagination Bar. |
| Figure 142 | Pagination Bar |
Physical

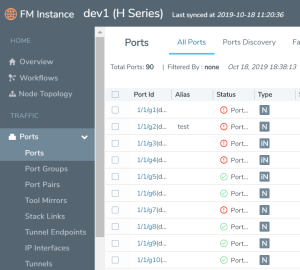

Starting in software version 5.8.00, the following sub-menu options under the Physical menu have been moved to the left navigation pane:
| • | Traffic > Ports |
| • | Traffic > Maps |
| • | Traffic > GigaSMART |
| • | Traffic > Inline Bypass |

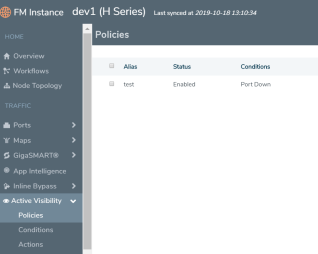

| • | Traffic > Active Visibility |
| • | System > Roles and Users |
| • | System > Settings |

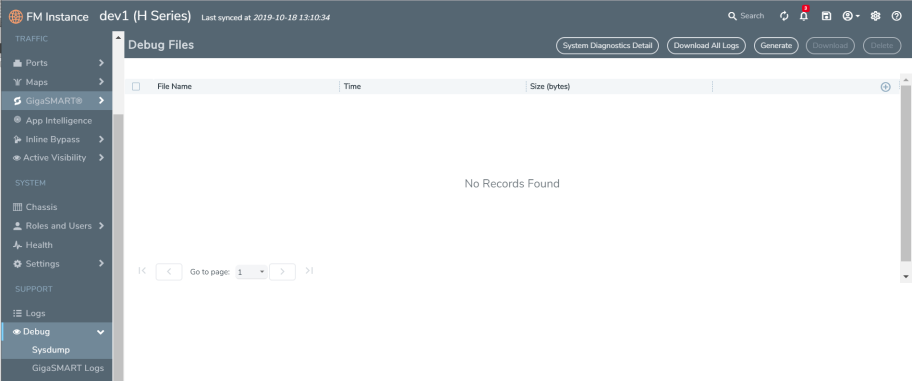

| • | Support > Debug |
|
Release 5.7 |
Release 5.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Administration
The following sub-menu items under the Administration menu has been moved to the left navigation pane:
| • | Tasks |
| • | Authentication |
| • | System |
|
Release 5.7 |
Release 5.8 |
|
|
|
|
|
|
|
|
|
|
|
|
| • |
Changes in Quick Views
A quick view provides easy access to Visibility Fabric details such as nodes, ports, and traffic policies. Click on Port ID, Map Alias, Port error counts and other such items to get detailed information about these items.
Figure 3 Quick View Option in GigaVUE-FM 5.8 shows the changes incorporated in quick view for GigaVUE-FM 5.8 release. If you expand the quick view, the page appears on top of the existing page (without navigating to the page). Click Edit to navigate to the port edit page.
| Figure 143 | Quick View Option in GigaVUE-FM 5.8 |
Changes in Icons
The following icon types have been changed:
| • | Port Type Icons |
| • | Health Status Notification Icons |
Port Type Icons
The port type icons have been changed in GigaVUE-FM 5.8 release as follows:
|
Release 5.7 |
Release 5.8 |
|
|
|
Health Status Notification Icons
The health status notification icons have been changed in GigaVUE-FM 5.8 release as follows:
|
Health Status |
5.7 Release |
5.8 Release |
|
Up (connected, healthy) |
|
|
|
Warning
|
|
|
|
Down (disconnected), unreachable |
|
|
|
Unknown
|
|
|
