Packets Matching Multiple Rules in Same Map Example

1 illustrates how Flow Mapping® handles a case where a packet matches multiple rules in the same map. In cases like this, the packet is sent to all configured destinations when the first pass rule is matched (assuming there were no matching drop rules – drop rules have higher priority). You can see the port statistics illustrating this in 2.

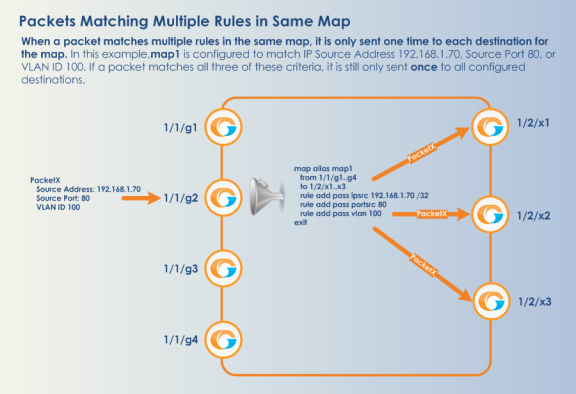

1

Packet Matching Multiple Rules in Same Map

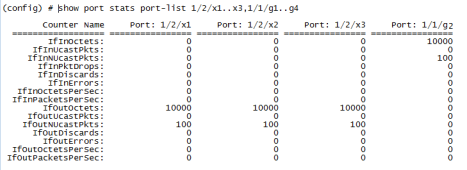

2

Show Port Stats Output for 1
