About the GigaVUE HC Series and GigaVUE TA Series

The GigaVUE HC Series delivers performance and intelligence in each of its Deep Observability Pipeline nodes, with port density and speeds that scale to your needs, from 1Gb to 100Gb. With an intuitive Web-based interface (GigaVUE‑FM) and a powerful GigaVUE‑OS, the Deep Observability Pipeline is able to replicate, filter, and selectively forward network traffic to monitoring, management, and security tools.

The GigaVUE HC Series and GigaVUE TA Series include the following models that run GigaVUE‑OS:

■

GigaVUE‑HC1

■

GigaVUE‑HC3

■

GigaVUE‑HC1-Plus

■

GigaVUE-HCT

■

GigaVUE‑TA25

■

GigaVUE‑TA25E

■

GigaVUE-TA100

■

GigaVUE‑TA200

■

GigaVUE‑TA200E

■

GigaVUE‑TA400

■

GigaVUE-TA400E

Note:  This document describes how to configure and operate the GigaVUE‑OS for GigaVUE HC Series and GigaVUE TA Series nodes.

GigaVUE‑HC1	● 1RU Footprint ● Two Module Slots (Bays) ● Dedicated Cluster Management Port ● Supports all GigaVUE‑HC1 Modules ● Cluster with GigaVUE HC Series and GigaVUE TA Series Nodes ● All ports, excluding BPS ports, of same type and speed can be used to create GigaStream.

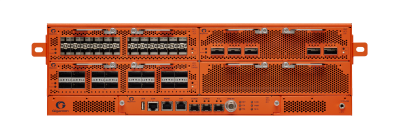

GigaVUE‑HC3	● 3RU Footprint ● Four Module Slots (Bays) ● Internal Control Card ● Extension Board ● Dedicated Cluster Management Port ● Supports all GigaVUE‑HC3 Modules ● Cluster with GigaVUE HC Series and GigaVUE TA Series Nodes. ● All ports, excluding BPS ports, of same type and speed can be used to create GigaStream.
GigaVUE‑HC1-Plus	● 1RU Footprint ● Two Module Slots (Bays) and one Fixed Base Module ● 4 x 100Gb / 40Gb, 8 x 25Gb, 10Gb, 1Gb connectivity ● Supports GigaSMART applications with a fixed rear GigaSMART Module. ● Supports Flex Inline in unprotected ports with 10Gb/40Gb/25Gb/100Gb/4 x 10Gb/4x25Gb speed Nodes. ● Cluster with GigaVUE HC Series and GigaVUE TA Series Nodes ● All ports, excluding BPS ports, of same type and speed can be used to create GigaStream.
GigaVUE-HCT	● 1RU and half rack width system ● One Module Slot (Bay) and one Fixed Base Module ● 2 x 100Gb/40G bconnectivity ● Supports Flex Inline in unprotected ports with 40Gb/100Gb/4x10G/4x25G speed Nodes. ● Cluster with GigaVUE HC Series and GigaVUE TA Series Nodes ● All ports, excluding BPS ports, of the same type and speed can be used to create GigaStream.
GigaVUE‑TA25	● 1 RU Footprint ● 1Gb/10Gb/48 x 25Gb/ ports and 8 x 100Gb/40Gb ports,   dual hot-pluggable power supplies (AC/DC), four rear hot swappable fan modules, two console ports, and a 10Mb/100Mb/1Gb management port ● Optional patch or breakout panel support ● Cluster with GigaVUE HC Series and GigaVUE TA Series Nodes
GigaVUE‑TA25E	● 1 RU Footprint ● 48 x 25Gb/10Gb/1Gb ports and 8 x 100Gb/40Gb port, dual hot-pluggable power supplies (AC/DC), four rear hot swappable fan modules, two console ports, and a 10Mb/100Mb/1Gb management port ● Optional patch or breakout panel support ● Cluster with GigaVUE HC Series and GigaVUE TA Series Nodes.
GigaVUE-TA100	● 1RU Footprint ● 32 x 100Gb/40Gb ports, hot swappable fan modules ● Optional patch or breakout panel support ● Cluster with GigaVUE HC Series and GigaVUE TA Series Nodes.
GigaVUE‑TA200	● 2RU Footprint ● 64 x 100Gb/40Gb ports, hot swappable fan modules ● Optional patch or breakout panel support ● Cluster with GigaVUE HC Series and GigaVUE TA Series Nodes.
GigaVUE‑TA200E	● 2RU Footprint ● 64 x QSFP28 ports (40G/100G), dual power supply modules (AC/DC) and hot swappable fan modules ● UART RS232 Console port (RJ45) and Management port (RJ45).
GigaVUE‑TA400	● 1RU Footprint ● 32 x 400Gb /100Gb/ 40Gb QSFP-DD/ QSFP28/QSFP+ ports,   dual hot-pluggable power supplies (AC/DC), seven rear hot swappable fan modules, console port and a 10M/100M/1G management port. ● Cluster with GigaVUE HC Series and GigaVUE TA Series Nodes.

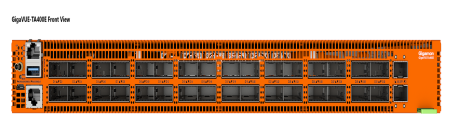

GigaVUE-TA400E	■   2RU Footprint ■   32 40Gb/100Gb/400Gb QSFP-DD/ QSFP28/QSFP+ ports, dual hot-pluggable power supplies (AC/DC), six hot-swappable fan modules, console port and a 10M/100M/1G management port. ■   Breakout panel support ■   Console port (RJ45) and Management port (RJ45). ■   In addition provides 2 x 10Gb/1Gb SFP+/SFP ports ■   Cluster with GigaVUE HC Series nodes and GigaVUE TA Series Nodes.
